Product Details:
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model No. | V53 Series |
| Action | Stem up to close port A-AB |
| Valve type | 3-way mixing |
| Nominal pressure rating | PN16 |
| Flow Characteristic | Equal percentage port A-AB, linear port B-AB |
| Rangeability | 50:1 |
| Stroke | 20 mm |
| Approximate | 0.05 percent Cv. |
| Leakage rate | ≤0.5 % of kVS port A-AB
≤1 % of kVS port B-AB |
| Valve body End connections | Flanged per ISO 7005-2 |
| Material | Cast iron (GG25) |
| Trim Seat | Stainless steel, skirt guided |
| Stem | Stainless stee |
| Packing rings | Spring loaded PTFE cone |
| Maximum temperature differential in alternating hot/cold water use |
60 K |
| Medium temperature and max. pressure PN16 |
2 … 120 ; 1600 kPa 120 … 150 ; 1440 kPa 150 … 170 ;1370 kPa |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

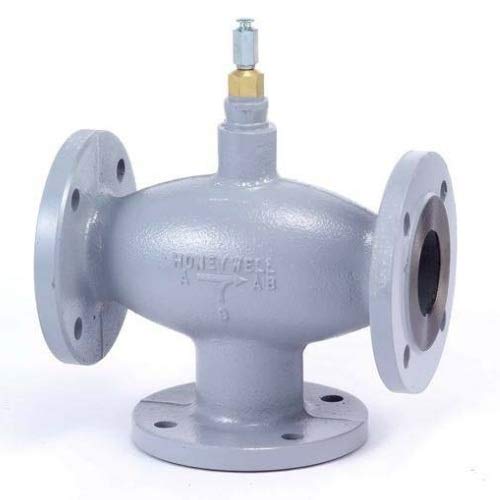

Honeywell Linear Valve
Features :
• Cast iron body with flanged end connections
• Metal to metal seating for long life span
• Self adjusting packing
• Accurate positioning to ensure state of the art temperature control
• Direct coupled electric and pneumatic actuators for easy mounting
• Constant total flow throughout full plug travel
