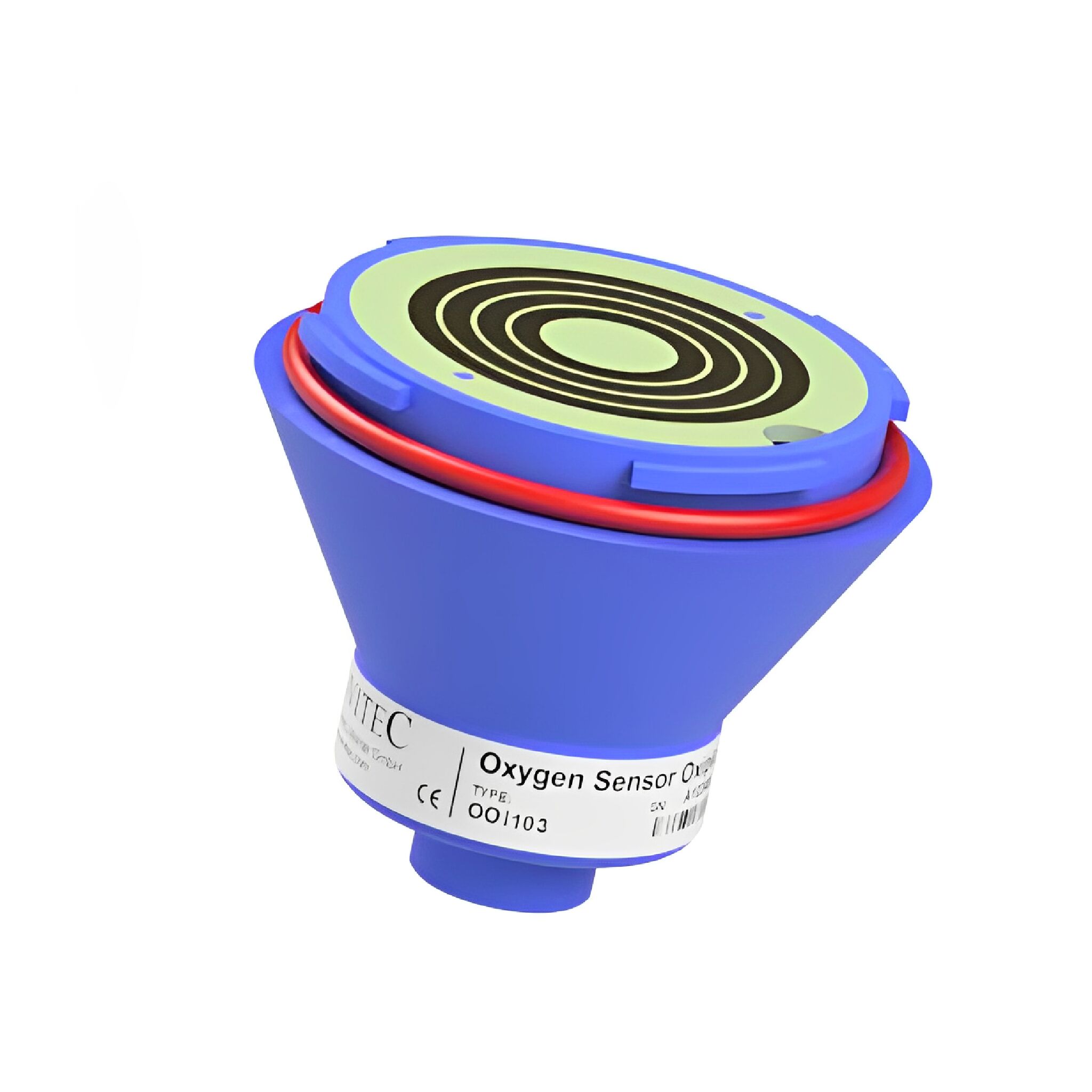

OOI103(E01-00-0095) Honeywell Envitec Oxygen Sensor

Available on order

7,500.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details :

Product Description
Brand Honeywell Envitec
Model Name/Number OOI103
Measurement range 0 % … 100 % oxygen (at atmospheric pressure)
Electrical interface Gold plated slip rings (3.2 V battery built-in for OxiQuant S)
Output in ambient air 9 mV … 15 mV
Output difference 1.25 mV (between the two channels)
Part number 01-00-0095
Accuracy meets ISO 80601-2-55 requirements
Repeatability < 1 % volume O2 at constant temperature and pressure
Linearity error < 3 % relative
Response time < 13 s to 90 % of final value
Influence of humidity -0.03 % rel. per % RH at 25 °C
Pressure range 0.6 bar … 2 bar (ppO2 0 … 1250 mbar O2)
Operating temperature 0 °C … +50 °C
Temperature compensation built-in NTC compensation
Operating humidity 0 % … 99 % RH non-condensing
Storage temperature -20 °C … +50 °C
Warm-up time < 30 minutes, after replacement of sensor
Weight approximately 45 grams

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

OOI103 (E01-00-0095) Honeywell Envitec Oxygen Sensor

Use the advantages:

  1. Accurate and reliable response
  2. Excellent selectivity against CO2
  3. Excellent signal stability
  4. High product quality
  5. Short delivery times
  6. Technical support
  7. Honeywell Envitec OOI103 is Made in Germany
  8. Certified quality management system
  9. Designed for EnviteC Oxygen Monitor OxiQuant S

„We keep your devices operating at their best.“
EnviteC has been developing and manufacturing highly specialized products for medical applications and innovative products within the gas measurement technology for environmental,
industrial and safety applcations.

The company trusts in the quality of advanced production methods and processes. The result are oxygen sensors for industrial gas analysers, which share the same extraordinary quality, excellent signal stability and reliable response for accurate readings. These sensors for measuring the partial pressure of oxygen are designed to be used in devices for monitoring gas
supply equipment in industry and hospitals (not for personal protection nor for monitoring medical breathing air in direct contact with patients). EnviteC´s research and development activities are consistently aligned to customer and market needs – identification and optimization of sustainable product solutions are the main concerns of the company.

From standard sensors to customized sensors
Experienced EnviteC engineers analyze customer requirements. This input is used for different standard and OEM applications, and ongoing support is provided right up to the final integraton in the solution. EnviteC designs customized sensors characterized by a maximum possible degree of precision.
