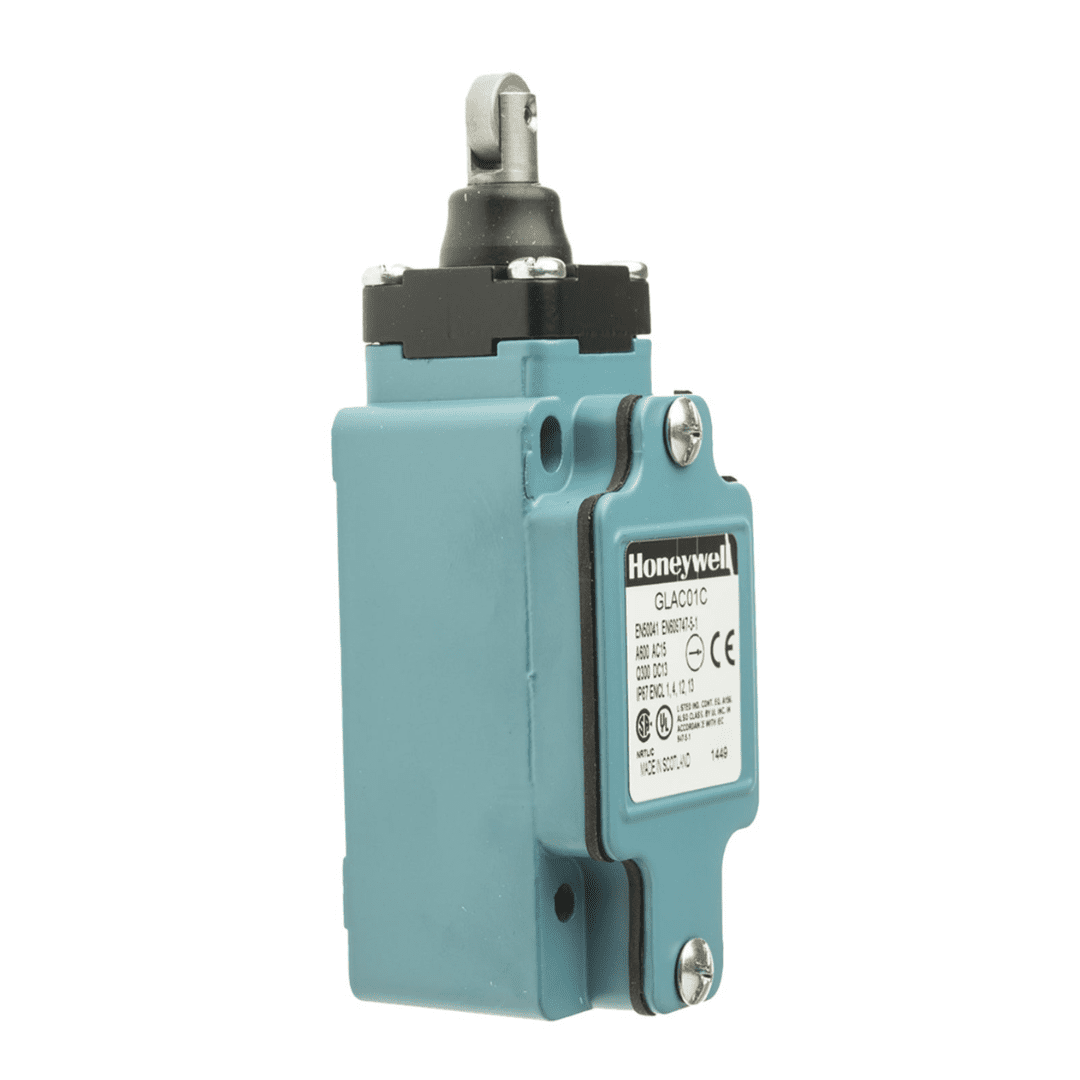

GLAC01C Honeywell Limit Switch

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model GLAC01C
Certifications CE, CCC1, CSA, UL
Housing material Electrostatic epoxy coated zinc
Contact material Silver alloy (standard), gold-plated (low-energy applications)
Rated operational voltage (Ue) 240 Vac, 600 Vac, 250 Vdc
Rated operational current (Ie) 3 A, 1.2 A, 0.27 A
Thermal current (Ith) 10 A, 2.5 A
Rated insulation voltage (Ui) 300 V; 600 V
Pollution degree 3
Sealing IP67; NEMA/UL 1, 4, 12, and 13
Operating temperature -40 °C to 85 °C [-40 °C to 185 °F] side rotary actuator
-25 °C to 85 °C [-13 °F to 185 °F] other actuators
Mechanical life Up to 15 million operations
Vibration 10 g conforming to IEC 68-2-6; railway application per IEC 61373 Class I Car B type
Shock 50 g conforming to IEC 68-2-27; railway application per IEC 61373 Class I Car B type
Body Style Non plug-in
Conduit 0.5-14 NPT
Basic Switch 1NC/1NO, SPDT snap action
Head Side rotary
Lever 38 mm fixed, 19 x 6 steel roller

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Description :-

GLAC01C Honeywell Limit Switch Series is designed to global EN50041 standards and well suited for worldwide applications. Honeywell modular design (heads/actuators, bodies, and contact blocks) of the limit switch allows for rapid response to meet customer applications. The rugged die-cast metal housing of the switch is ideal for indoor and outdoor applications where a degree of IP or NEMA enclosure sealing is required. Honeywell Limit Switch Normally closed snap-action contacts and normally closed slow action contacts are positive opening.
