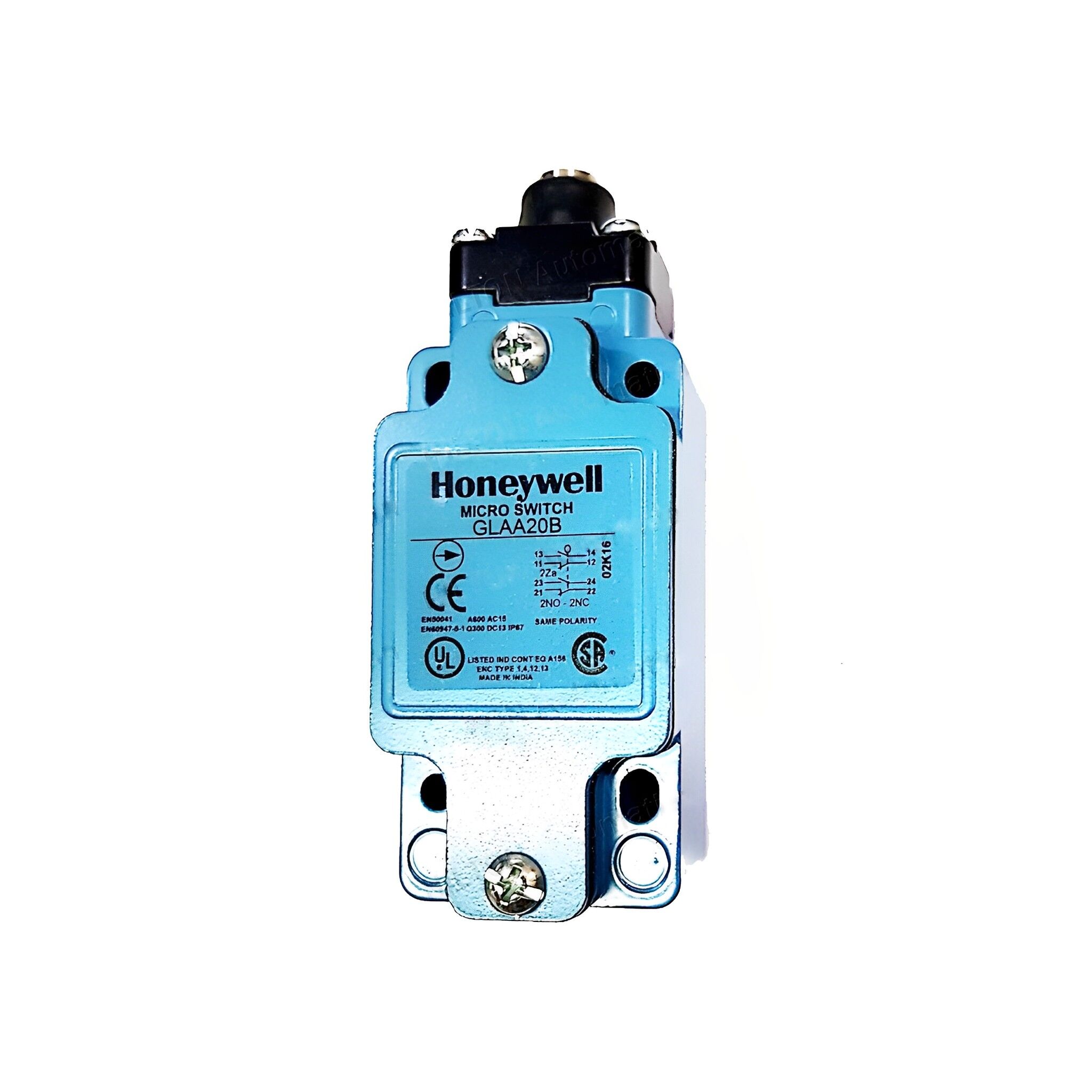

GLAA20B Honeywell Limit Switch

4,615.00 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model GLAA20B
Certifications CE, CCC1, CSA, UL
Housing material Electrostatic epoxy coated zinc
Contact material Silver alloy (standard), gold-plated (low-energy applications)
Rated operational voltage (Ue) 240 Vac, 600 Vac, 250 Vdc
Rated operational current (Ie) 3 A, 1.2 A, 0.27 A
Thermal current (Ith) 10 A, 2.5 A
Rated insulation voltage (Ui) 300 V; 600 V
Pollution degree 3
Sealing IP67; NEMA/UL 1, 4, 12, and 13
Operating temperature -40 °C to 85 °C [-40 °C to 185 °F] side rotary actuator
-25 °C to 85 °C [-13 °F to 185 °F] other actuators
Mechanical life Up to 15 million operations
Vibration 10 g conforming to IEC 68-2-6; railway application per IEC 61373 Class I Car B type
Shock 50 g conforming to IEC 68-2-27; railway application per IEC 61373 Class I Car B type
Body Style Non plug-in
Conduit 0.5-14 NPT
Basic Switch 2NC/2NO, DPDT snap action
Head Top Pin Plunger ( SST )

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Description :-

GLAA20B Honeywell Limit Switch Series is designed to global EN50041 standards and well suited for worldwide applications. The Honeywell Limit Switch GLAA20D, modular design (heads/actuators, bodies, and contact blocks) of the limit switch allows for rapid response to meet customer applications. The rugged die-cast metal housing of the switch is ideal for indoor and outdoor applicationsc where a degree of IP or NEMA enclosure sealing is required. Normally closed snap-action contacts and normally closed slowaction contacts are positive opening.

Value to Customers :-

• Easy to install and maintain
• Rugged metal construction

Potential Applications :-

• Aerial lifts, boom lifts
• Automotive assembly lines and
machining centers
• Agriculture equipment
• Conveyors
• Doors and apertures
• Material handling
• Machine tools
• Railroad locomotives and railroad
signaling equipment
• Transportation hubs
• Valves
