Description

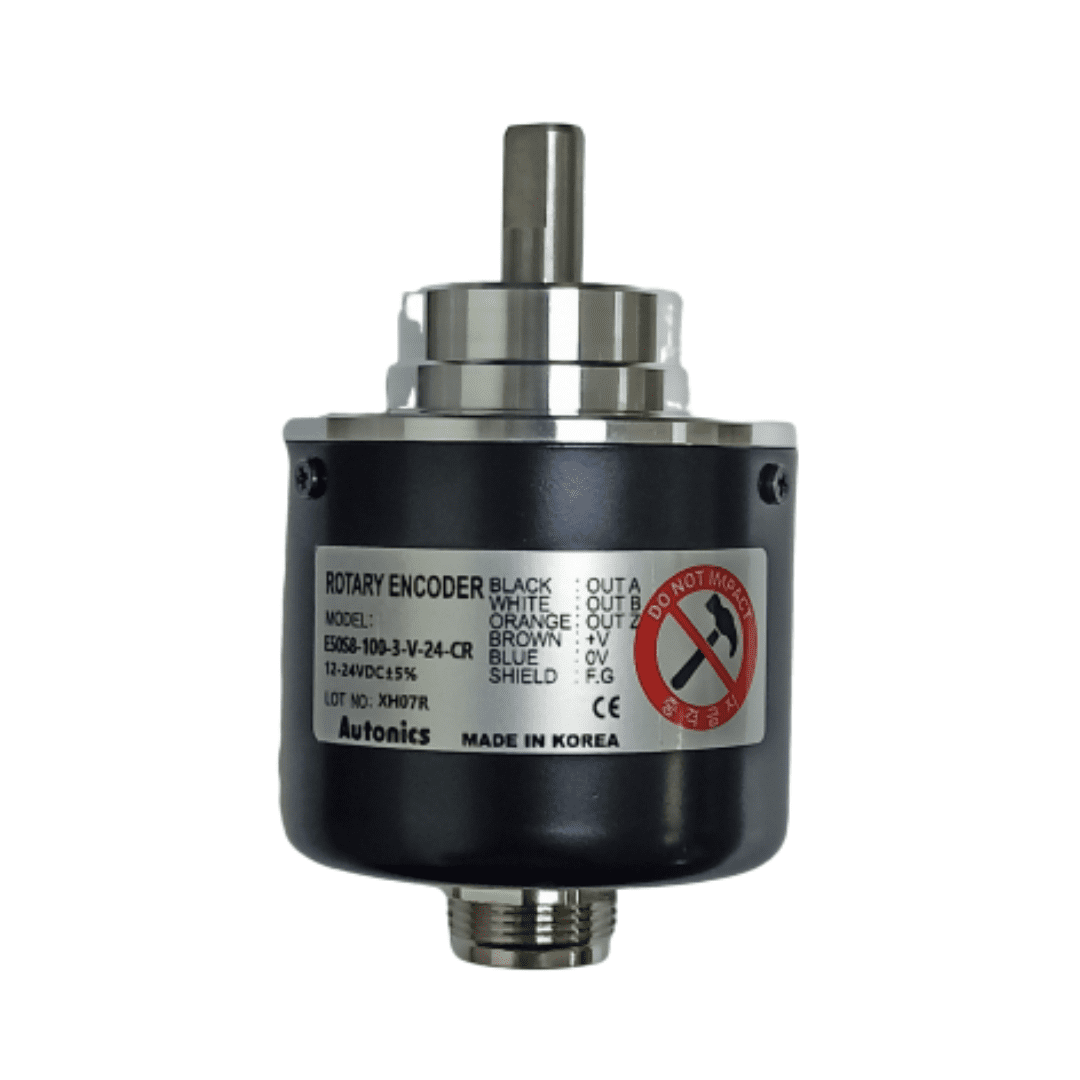

E50S8-100-3-V-24-CR Autonics Encoder
Features:
● 12-24VDC Power Supply of Line driver output(Line-up)
● Suitable for measuring angle, position, revolution, speed, acceleration and distance
● Power Supply : 5VDC, 12-24VDC ±5%
E50S8-100-3-V-24-CR Autonics Encoder
₹8,834.00 Excluding GST
For Bulk requirement, Kindly click on enquiry now button
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | E50S8-100-3-V-24-CR |
| Series | E50S Series shaft type of Incremental Rotary Encoder |
| Diameter | 50mm, Shaft Type |
| Shaft Outer Diameter | Ø8mm |
| Max. Response Frequency | 300kHz |
| Max. Allowable Revolution | 5000rpm |
| Starting torque | Max. 800gf.cm(max. 0.0784N.m) |
| Resolution | 100P/R |
| Output phase | A, B, Z |
| Control output | Voltage |
| Power supply | 12-24VDC  ±5%(ripple P-P: max. 5%) |
| Connection type | Axial connector type |
| Protection structure | IP64 (IEC standard) |
| Environment Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø8mm coupling, Bracket |
| Weight | Approx. 268g(Approx. 180g) |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.
Related products
-
BUP-50 Autonics Photoelectric Sensor ₹3,074.00 Excluding GST -

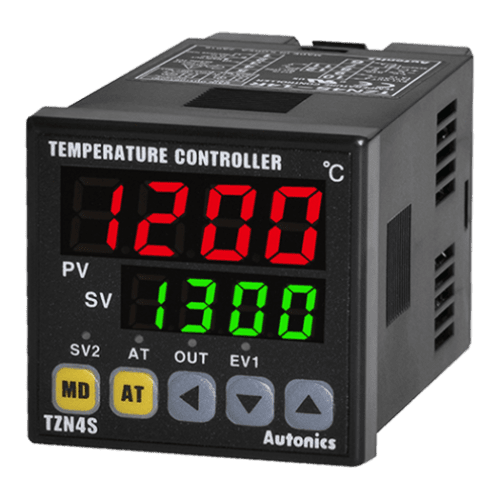

TZN4S Autonics Temperature Controller ₹8,394.00 Excluding GST -
-
