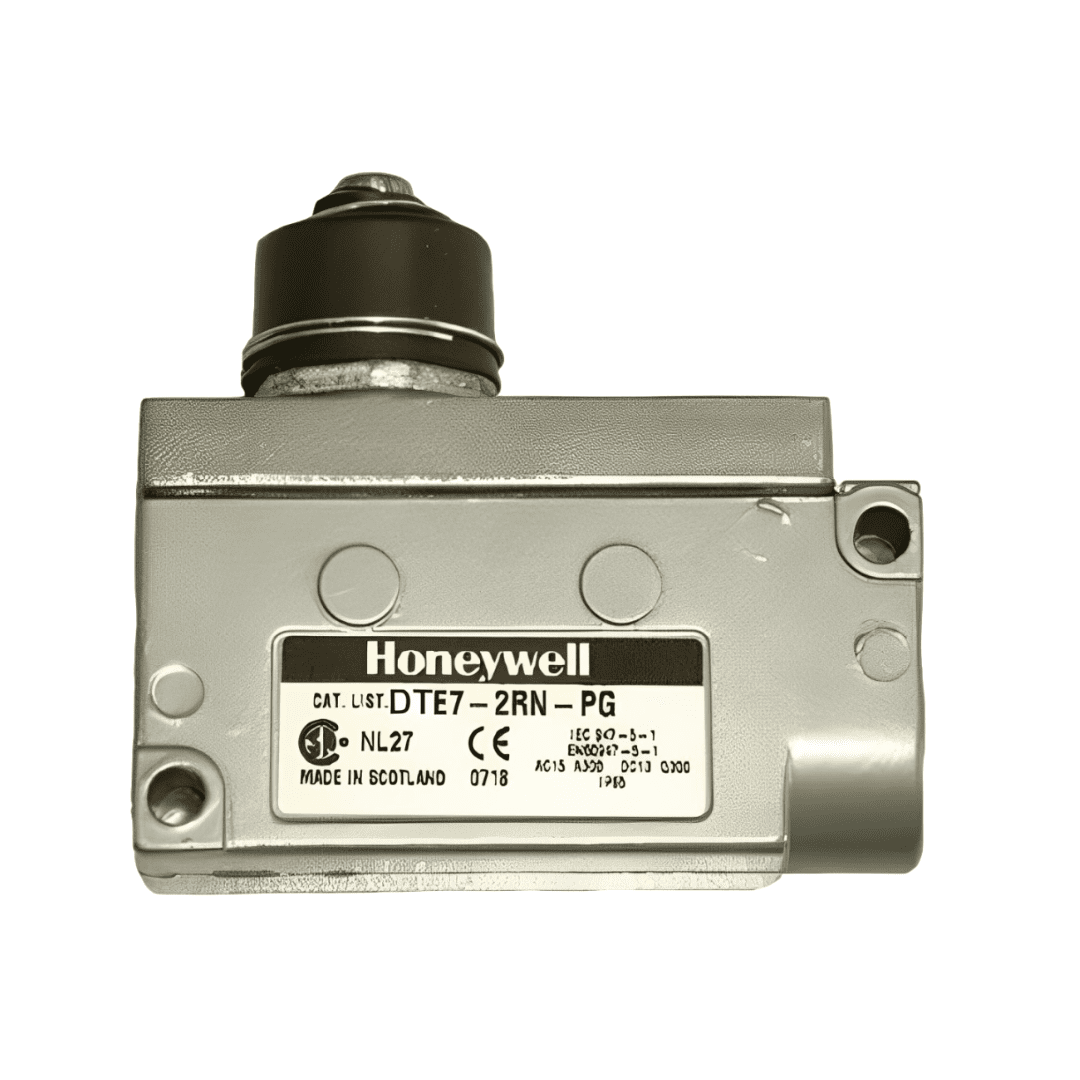

DTE7-2RN-PG Honeywell Micro Switch

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	DTE7-2RN-PG
Ampere Rating	10 A
Circuitry	DPDT
Operating force	3,34 N to 5,56 N [12.0 oz to 20.0 oz] max.
Termination	screw
Voltage	125 Vac, 250 Vac, 28 Vdc
Agency Approvals	UL recognized; CSA certified, MIL-PRF-8805
Operating temperature	-55 °C to 85 °C [-67 °F to 185 °F]
Contact material	silver
Housing	general purpose phenolic
Expected mechanical life	3,000,000 operations
Use	design permits several different wiring configurations
Actuator	pin plunger, straight plunger, straight lever, reversed lever, roller lever

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

DTE7-2RN-PG Honeywell Micro Switch premium specialty large snap-action switches are designed for repeatability and enhanced life. These series of precision switches feature application-specific characteristics. From double-break circuitry to handling power duty electrical loads, MICRO SWITCH premium large snap action switches are suitable for a variety of applications.

BS Series switches offer alternatives to solve challenging switch applications. These unique solutions can provide adjustable operating characteristics, sequential outputs, or impact actuation (no external plunger).

DT Series switches consist of two independent single-pole. double throw (SPDT) contacts in one housing controlled by an integral common actuator. The DPDT contact configuration provides a contact for the control circuit and a different contact for the signal or auxiliary circuit.

MT Series magnetic blow-out switches are designed to switch high-capacity (125 Vdc/250 Vdc) electrical loads. An integral magnet around the contact gap deflects the arc away from the contacts, extending switch life. Vents between the cover and housing allow the hot gas to escape.

Easy to gang mount, MN Series single pole double throw double-break switches are for use with limit or control mechanisms on machine tools, presses, or other equipment. MICRO SWITCH TB Series miniature single pole double throw double break switches offer a means of controlling circuits similar to the MN Series switches except in a smaller package.
