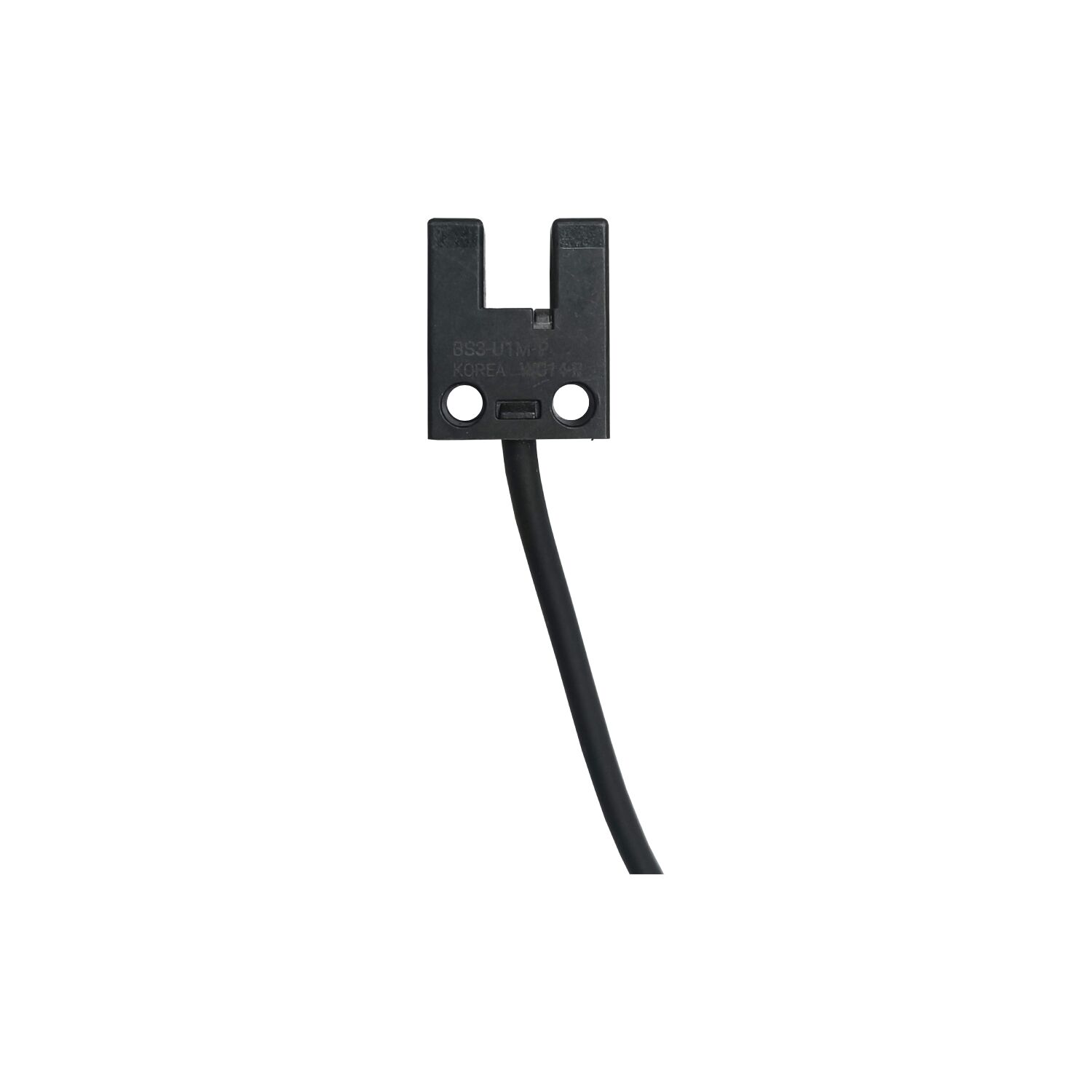

Name: BS3-U1M-P Autonics Photomicro Sensor
SKU: 65403
Price: 1613.00 INR
Availability: OutOfStock

BS3-U1M-P Autonics Photomicro Sensor

Available on order

₹1,613.00 Excluding GST

Product Details:

Product	Description
Brand	Autonics
Model No.	BS3-U1M-P
sensing type	Through-beam type
Sensing distance	5mm
Sensing target	Opaque
Min. sensing target	0.8 mm × 1.8 mm
Hysteresis(distance)	0.05mm
Response time	Light ON: Max. 20?,Dark ON: Max. 100?
Response frequency	2kHz
Light source	Infrared LED
Peak emission wavelength	940nm
Operation mode	Light ON/Dark ON(set by control wire)
Indicator	Operation indicator (red LED)
Weight	Approx. 50g
Power supply	5-24VDC ±10%(ripple P-P : max. 10%)
Current consumption	Max. 15mA
Control output	PNP open collector
Load voltage	24VDC
Load current	Max. 50mA
Residual voltage	NPN: ?1.2VDC , PNP: ? 1.2VDC
Protection circuit	Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit
Insulation resistance	20 M? (250 VDC megger)
Noise immunity	he square wave noise (pulse width: 1?) by the noise simulator ±240VDC

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

BS3-U1M-P Autonics Photomicro Sensor

Features:

Ultra compact size
Select appearance depending on the installation environment (K, F, R, U, L type)
Minimize malfunction and improve visibility
– Minimize sensing part, gap and flush of the body to reduce malfunctions caused by
a foreign substance
– Built-in the operation indicator can be checked in many directions
Selectable models for the operation of indicator
– Indicator turns ON under the light received condition
– Indicator turns ON under the light interrupted condition
Resistant structure for shock and vibration
-Shock 15,000 m/s (approx. 1,500 G)
-Vibration 10 to 2,000 Hz (1.5 mm double amplitude)
Selectable operation modes (Light ON/Dark ON)
High-frequency response: 2 kHz
