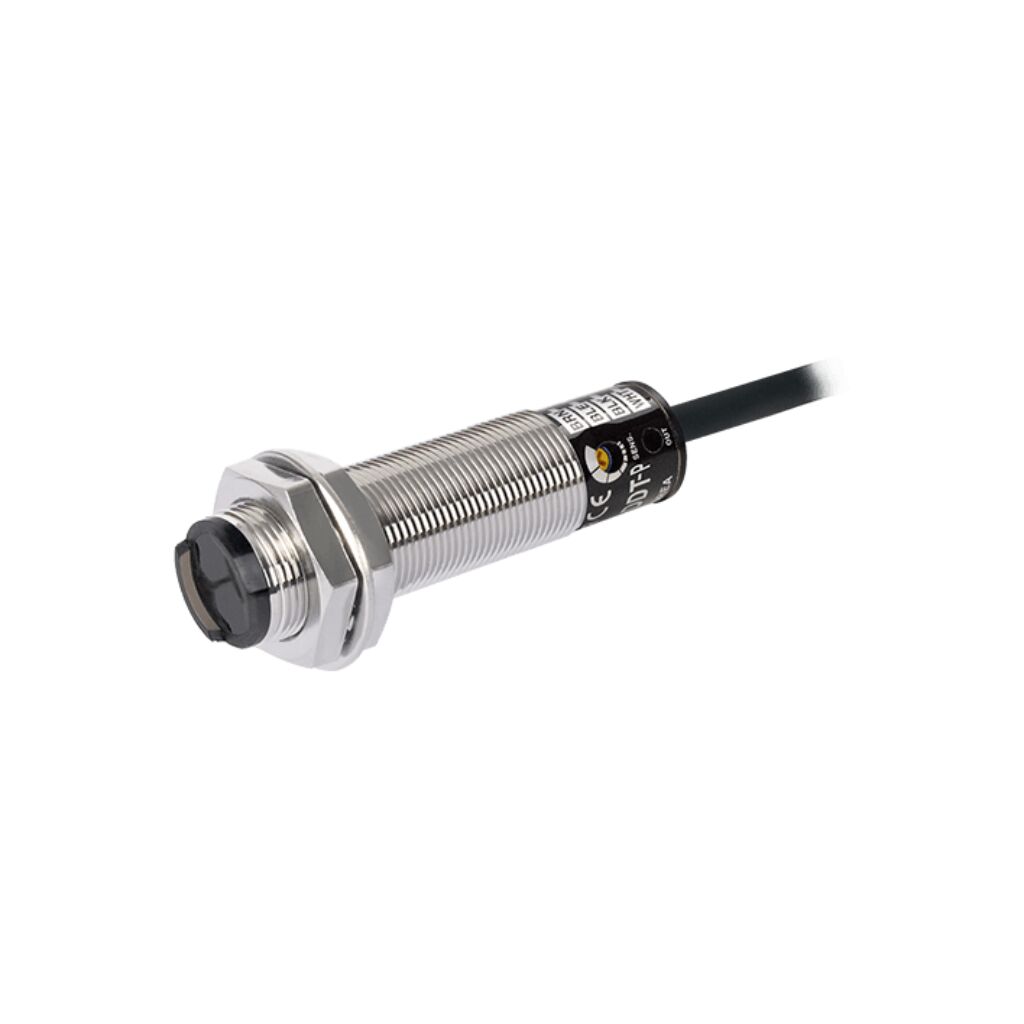

BR100-DDT-P Autonics Photoelectric Sensor

Product Details:

Product	Description
Brand	Autonics
Model Number	BR100-DDT-P
Sensing type	Diffuse reflective type
Sensing distance	100mm
Sensing target	Opaque, Translucent material
Light source	Infrared LED(940nm)
Response time	Max. 1ms
Power supply	12-24VDC= ±10%(ripple P-P: max. 10%)
Current consumption	Max. 45mA
Sensitivity adjustment	Sensitivity adjuster
Control output	PNP open collector Load voltage: max.30VDC= Load current: max.200mA Residual voltage -PNP: max. 2.5VDC
Connection type	Cable type ,connector type
Protection structure	IP66
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Material	ㆍCase: metal
Weight	Approx. 160g(approx. 120g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

Features:

Realizes long sensing distance (20m) (through beam type)
Superior noise resistance with digital signal processing
High speed response time under 1ms
Power reverse polarity protection circuit, output short over current protection circuit
Suitable for sensing in narrow space ( narrow beam type)
External sensitivity adjustment (except through-beam type)
Light ON , Dark ON switchable by control wire (except through-beam type)
Excellent Environment-resistance performance with glass lens(BR4M)
Protection Structure IP66 (IEC Standard)
