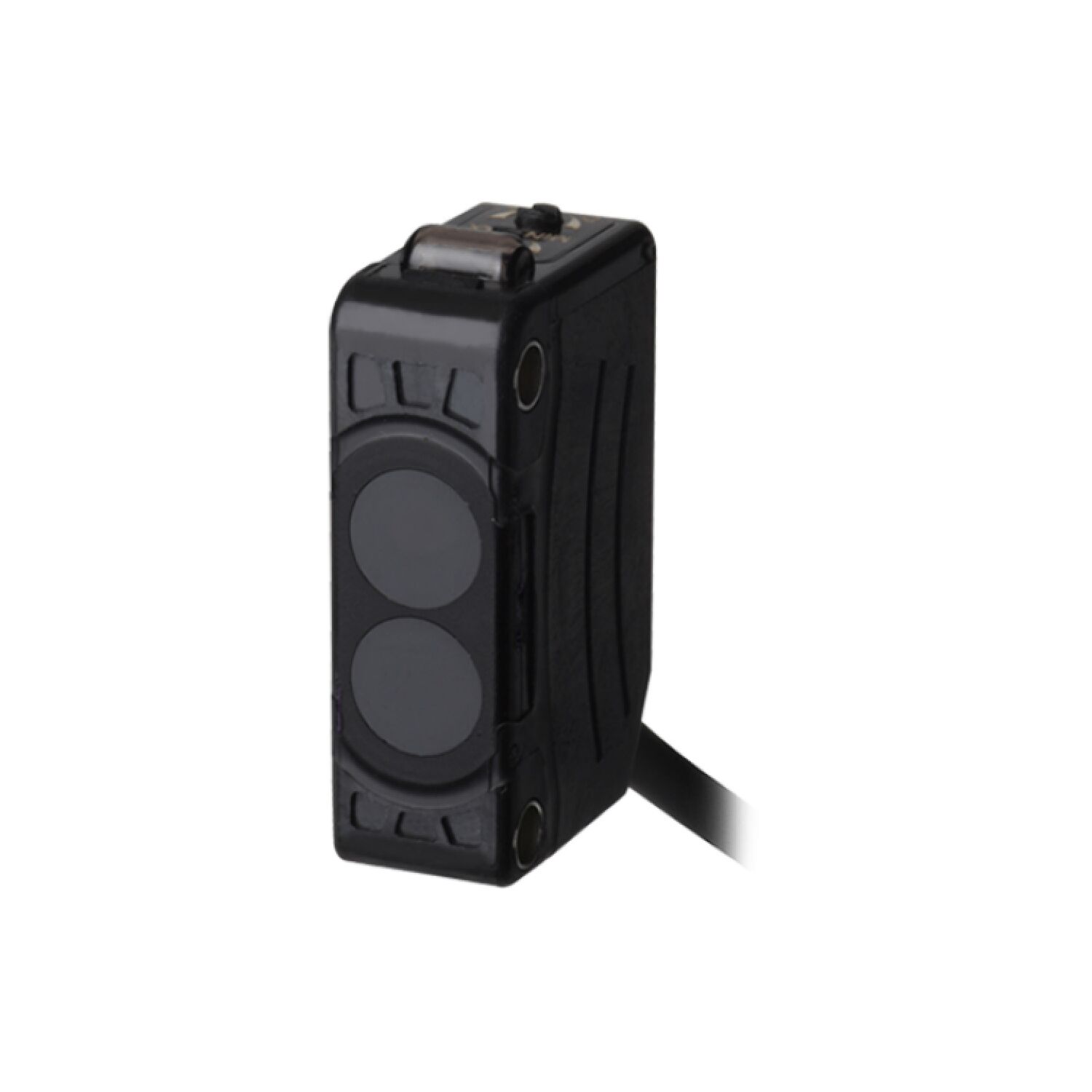

Name: BJ1M-DDT Autonics Photoelectric Sensor
SKU: 64916
Price: 3240.00 INR
Availability: InStock

BJ1M-DDT Autonics Photoelectric Sensor

₹3,240.00 Excluding GST

Available in Stock

Product Details:

Product	Description
Brand	Autonics
Model Number	BJ1M-DDT
Sensing Type	Diffuse reflective type
Sensing Distance	1m
Sensing Target	Opaque, Translucent material
Response time	Max. 1ms
Power Supply	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 30mA
Sensitivity adjustment	Sensitivity adjuster
Operation mode	Light ON/Dark ON(set by switch)
Control output	NPN open collector
Connection type	Cable type(Ø3.5, 2m)
Environment Ambient illumination	Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment Ambient temperature	-25 to 55â„ƒ, storage: -40 to 70â„ƒ
Protection structure	IP65
Approval	CE
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance)	Max. 20% of sensing distance
Material	Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate, Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum, Sleeve: Brass, Ni-plate
Accessories Common	Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver
Weight	Approx. 70g (approx. 45g)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

BJ1M-DDT Autonics Photoelectric Sensor

Features

Long sensing distance with high quality lens
Waterproof structure IP65 by rubber injection (IEC standard)
Compact size
Detects up to 15m(Transmitted beam type)
Long sensing distance Diffuse reflective type 1m,
Polarized reflective type 3m (MS-3S)
Light ON/ Dark ON selectable
Built-in sensitivity adjuster (Except for BJG30-DDT)
Mutual interference prevention function
(Retroreflective type, Diffube reflective type)
Stable detection for transparent object (LCD, PDP, glass etc)
by BJG30-DDT.
