₹4,579.00 Excluding GST
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | BEN10M-TFR |
| Sensing Type | Through-beam type |
| Sensing Distance | 10m |
| Sensing Target | Opaque materials of Min. Ø 16mm |
| Response time | Max. 20ms |
| Power Supply | 24-240VDC ±10% (Ripple P-P : Max.10%) |
| current Consumption | Emitter/Receiver: Max. 4VA |
| Light Source | Infrared LED(850nm) |
| Operation Mode | Light ON/Dark ON(set by switch) |
| Control output | Relay |
| Connection | Cable type(Ø5, 2m) |
| Approval | CE |
| Shock | Mechanical:- 500m/s² (50G) in X,Y,Z directions for 3 times |
| Ambient Temperature | -20 ∼ 65°C Storage: -25 to +70°C |
| Ambient Humidity | 35 to 85%RH , Storage:- 35 to 85%RH |
| Material | Case, Case cover: Heat resistant Acrylonitrile butadiene styrene, Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate), Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum, Nut: steel chromium molybden |
| Protection | IP50 (IEC Standard) |
| Accessories_Common | Adjuster driver, Fixing bracket, Bolts, Nuts |
| Weight | Approx. 342g |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

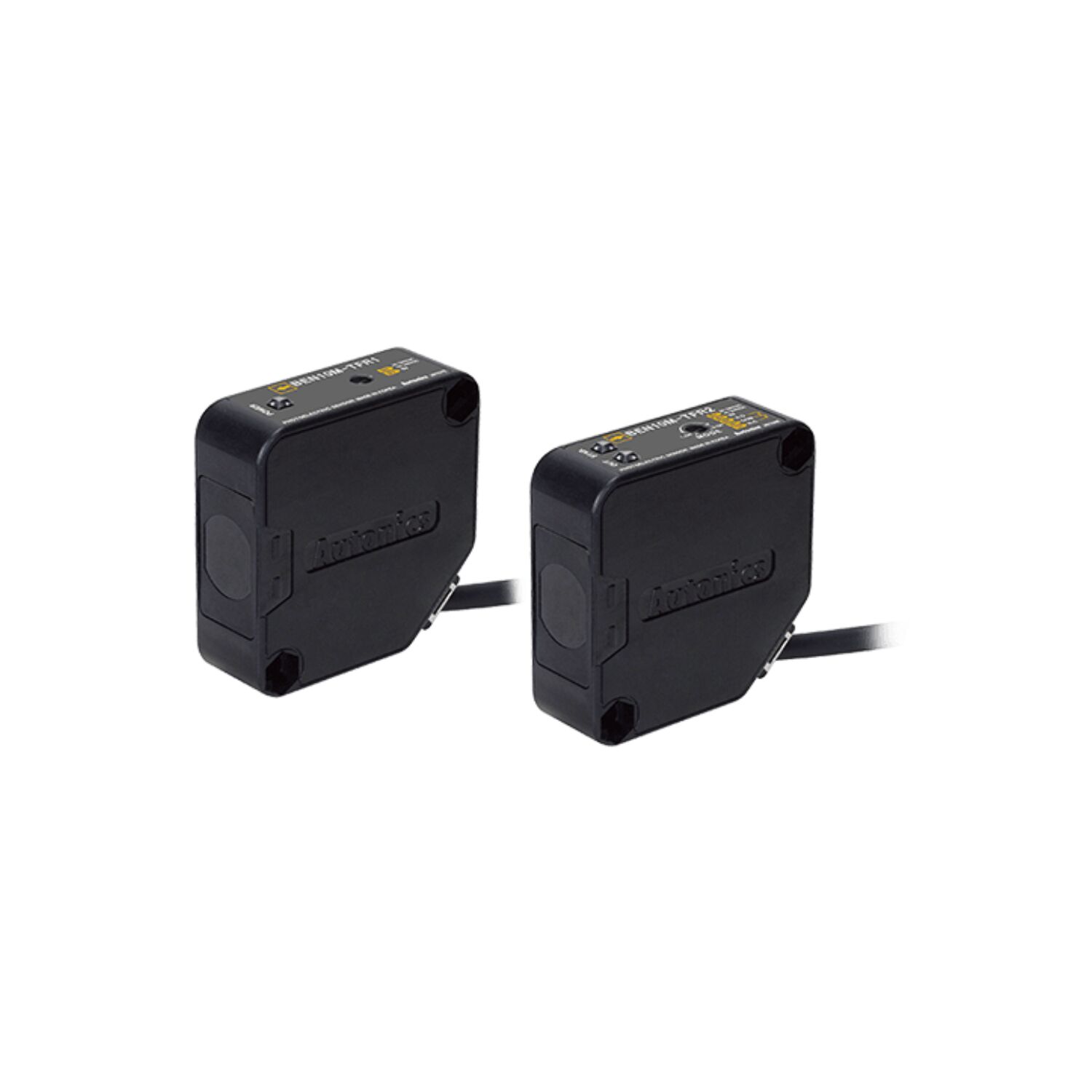

BEN10M-TFR Autonics Photoelectric Sensor
Features:
