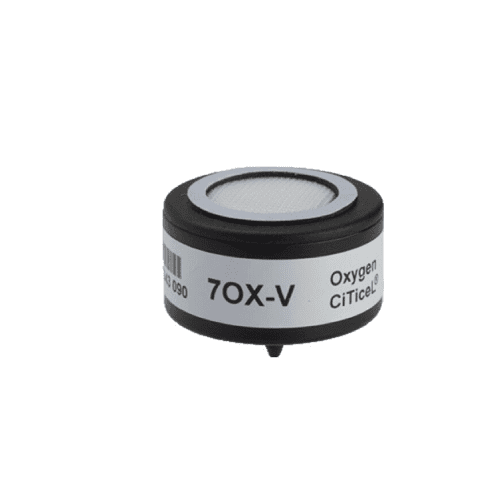

AAV66-380 (7OXV) City Technology Oxygen Sensor

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	City Technology
Model Number	AAV66-380 (7OXV)
Technology	Electrochemical
Measurement Range	0-25% vol. O2
Maximum Overload	30% vol. O2
Output Signal*	0.195 – 0.25 mA in Air
Response Time (T90)	<15 Seconds
Zero Current (Offset)	<0.5% vol. O2
Linearity	Can be considered linear in many cases.
Recommended Load Resistor	100 Ω
Casing Material	ABS
Weight	<34 g
Operating Temperature Range	-20°C to +50°C
Recommended Storage Temp	0°C to 20°C
Temperature Coefficient	0.2% signal / °C
Absolute Pressure Range	Atmospheric ± 10%
Differential Pressure Range	40 mBar maximum
Pressure Coefficient	<0.02% signal / mBar
Relative Humidity Range Intermittent Continuous	0 to 99%RH non-condensing 15 to 99%RH non-condensing
Long Term Output Drift*	<5% signal / year

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

AAV66-380 (7OXV) Oxygen Sensor

Honeywell 7-Series range is suited to general gas detection applications including oxygen and toxic gases.
Sensors are suitable for use in portable or fixed gas detectors and medical gas applications.

Features
