Product Details:
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model no. | 91MCE2-P1 |
| Operating speed | 0,05 mm to 1 m per second |
| Insulation resistance | > 100 Mohm @ 500 Vdc |
| Rated voltage | 300 Vac (EN60947-5-1) |
| Rated thermal current | 10A pre-leaded versions; 3A connector versions |
| Electrical rating | ac 15 A 300; dc 13 Q300 |
| Expected mechanical life | 5 million operations |
| Expected electrical life | 5 x 105 operations |
| Operating temperature | -25 °C to 85 °C [ -13 °F to 185 °F] without the formation of ice |
| Humidity | < 95 % RH |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

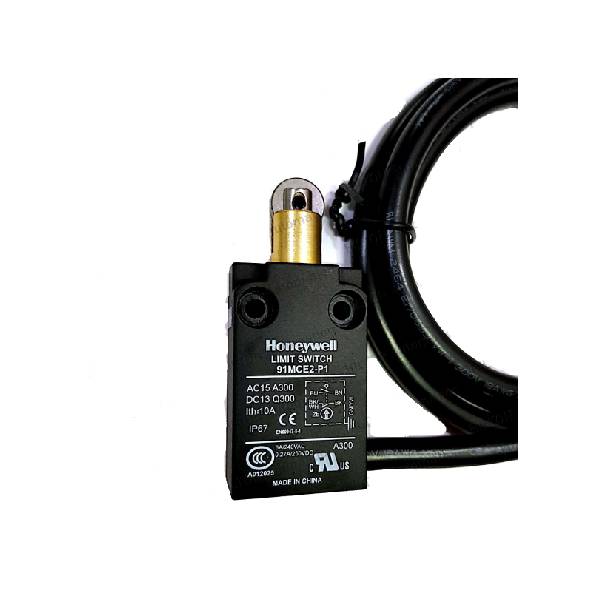

91MCE2-P1 Honeywell Limit Switch
DESCRIPTION
The 91MCE series limit switch is a compliment to Honeywell’s existing product line of smaller, lower cost limit switches. Designed for modern industrial OEMs, the miniature package size fits in applications where space is limited. The small package size can be gang mounted for applications requiring more than two switch circuits. The 20mm mounting pattern meets most globally accepted mounting standards.
