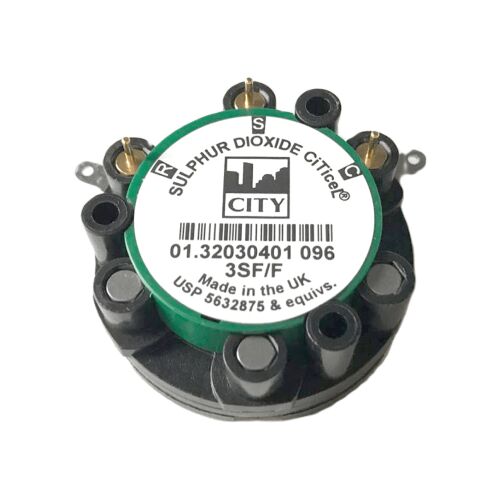

AD006-J0K (3SFF) City Technology Sulfur Dioxide Sensor

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	City Technology
Model Number	AD006-J0K (3SFF)
Operating Principle	3-electrode electrochemical
Nominal Range	0-2000 ppm SO2
Maximum Overload	5000 ppm SO2
Filter	To remove H2S & HCl
Sensitivity*	0.10 ± 0.02 μA/ppm
Response Time (T90)*	<35 Seconds
Baseline Offset (clean air)*	±2 ppm equivalent
Zero Shift (+20°C to +40°C)	<5 ppm equivalent
Resolution	1 ppm (electronics dependant)
Repeatability	1% of signal
Output Linearity	Linear
Recommended Load Resistor	10 Ω
Bias Voltage	Not Required
Weight	22 g
Housing Material	Glass filled polypropylene
Operating Temperature Range	-20°C to +50°C
Recommended Storage Temp	0°C to 20°C
Operating Pressure Range	Atmospheric ± 10%

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

AD006-J0K (3SFF) City Technology Sulfur Dioxide Sensor

3SFF CiTiceL® Sulfur Dioxide (SO2) Gas Sensor

The 3 Series range is City Technology’s original gas sensor range.
A wide variety of sensors are available in this format and are can be supplied with 4 mA to 20 mA and mV transmitter boards.

Part Number : AD006-J0K

Key Features & Benefits
