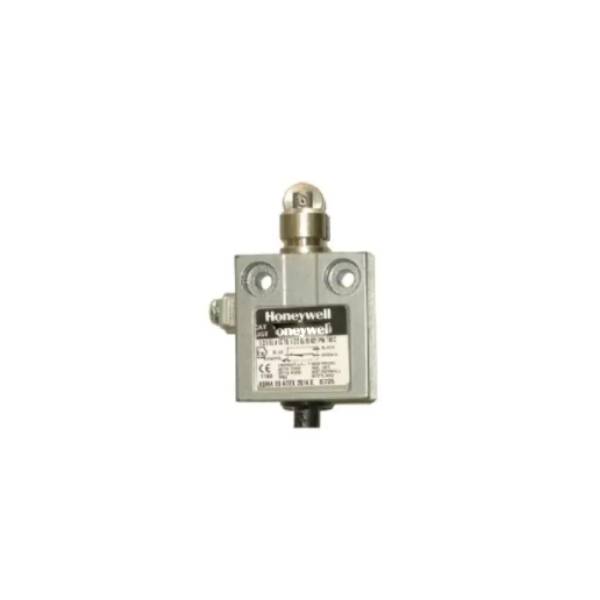

14CE101-6 Honeywell Limit Switch

Product Details:

Product Description
Brand Honeywell
Model No.
14CE101-6
Mechanical life 10 million
Operating temperature 0 °C to 70 °C [32 °F to 158 °F]
Approvals CE, PTB 98 ATEX 1064 X EExd IIC T6 Category II 2 G
Operating force (OF) 11,8 N max
Pretravel (PT) 1,8 mm [0.71 in] max.
Overtravel (OT) 3,0 mm [0.118 in] min.
Differential travel (DT) 0,1mm [0.004 in] max
Connection Harmonised CENELEC 4 x 0,75 mm2
cable

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

14CE101-6 Honeywell Limit Switch

The 14CE100 Series has been designed for use in explosive environments. It is approved to meet
the requirements of the Low Voltage directive and is CE marked. The prewired construction allows
for ease of installation where space is at a premium and external operating conditions can be
difficult
