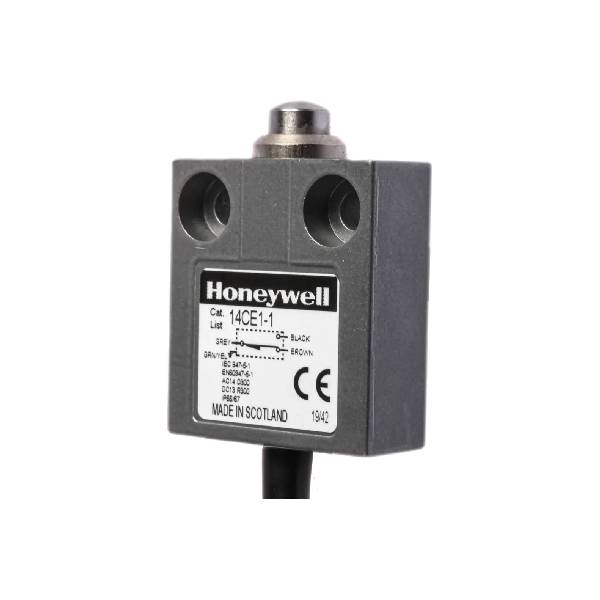

14CE1-1 Honeywell Limit Switch

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model No. 14CE1-1
Terminations Harmonized CENELEC PVC sheathed 4 x 0,75 mm2
(18 AWG) cable
Connector (dc), 4-pin male, M12 thread (-Q)
Connector (ac), 4-pin male, 1/2 in x 20 thread (-Q1)
Switching options SPDT, snap action contacts (1NC/1NO)
Sealing IP65, IP66, IP67, IP68
NEMA 1, 2, 3, 3R, 4, 6, 6P, 12 (boot seal), 13
Operating temperature 0 °C to 70 °C [32 °F to 158 °F]; optional -40 °C to 70 °C [-40 °F to 158 °F]
Mechanical life up to 10 million
up to 5 million (wobble actuators)
Thermal current 1 A, 3 A, 5 A (depending upon model)
Rated insulation voltage (Ui) 250 V
Rated impulse withstand voltage (Uimp) 1.5 kV
Pollution degree 3

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell BXINDA4L-1A Flameproof Limit Switch

Description

14CE1-1 Honeywell Limit Switch

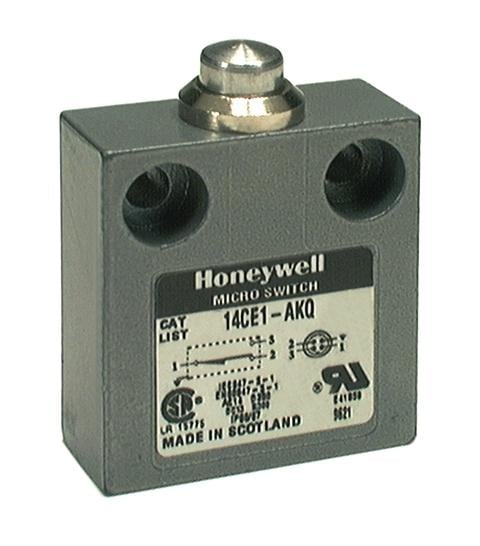

MICRO SWITCH™ 14CE Series Compact Precision Limit Switches All MICRO SWITCH™ 14CE Series compact enclosed switches incorporate fluorocarbon diaphragm sealing to provide reliable protection, meeting IP65, IP66, IP67, and IP68 as well as NEMA 1, 2, 3, 3R, 4, 6, 6P, and 13 requirements. Versions with a boot seal also meet NEMA 12 requirements (dust, falling dirt, liquid media with solid contaminates). The cable or connector and basic switch terminals are encapsulated in an epoxy sealant, offering excellent resistance in harsh environments. For low temperature applications (down to -40 °C, -40 °F), CE Series switches can be supplied with low temperature seals and lubricant. The CE Series switches are rugged and versatile switches which can be applied indoors in many harsh factory floor applications, as well as on outdoor equipment in extreme temperatures. A full range of actuators are available, including plain plungers, roller plungers, side rotary, multi-directional wire, and manually operated. The switches are also available with the industry standard, M12 micro-change 4-pin connector. MICRO SWITCH™ 14CE products meet worldwide CE requirements.
