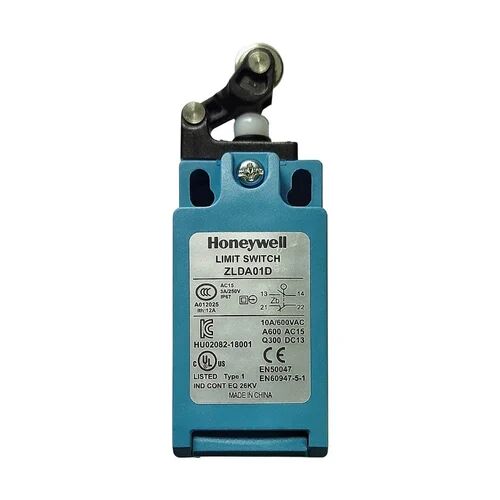

ZLDA01D Honeywell Limit switch

553.00 Excluding GST

(1 customer review)

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model Number ZLDA01D
<25m Ohm
2500V
Operating Speed 0.05mm~2m/s
Degree Of Protection IP65
Standard EN 50047
Enclosure Plastic
Operating Temperature -25~ +80 DegreeC
Humidity <95%RH
10 g / 50 g
120 ops/min
Electrical Rating AC15 A300 DC13 Q300
Mechanical Life 100000000
5X1000000

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

ZLDA01D Honeywell Limit switch , ZLS series limit switches are specifically designed for worldwide applications and is supported by Honeywell global resources for sales and after sales service. Honeywell ZLDA01D Limit switch, ZLS series limit switch is design to the latest IEC standard are available and include a wide range of EN50041 and EN50047 type switches. Miniature EN50047 limit switches are available in metal and double insulated enclosures and a metal enclosed 3-cable entry version (EN50047 mounting compatible) is also offered. Standard ZLS switch circuit variations include 2 and 3-circuit versions with forced disconnect mechanism. ZLS includes features to make quick installation easier and safer. Customers will benefit from Honeywell’s vast experience in serving world industries over many years. Most ZLS versions are interchangeable with almost all other makes of EN50041/47 switches.

TYPICAL APPLICATIONS

  1. Machine tools: metal fabrication equipment, presses, transfer lines and special machinery
  2. Material handling equipment: conveyors, elevators, cranes and hoists
  3. Packaging machinery and process equipment
  4. Textile machinery
  5. Construction machinery and equipment, vehicles and lift trucks

FEATURES

  1. Designed to the new IEC standard for world-wide applications
  2. Positive opening of normal closed contact meets IEC947- 5-1-3 safety standard.
  3. UL, CSA, and CE
  4. Sealing up to IP/65/ IP 67
  5. International conduit sizes
  6. Design for ease of installation
  7. Eleven basic switch versions, Wide choice of actuators
