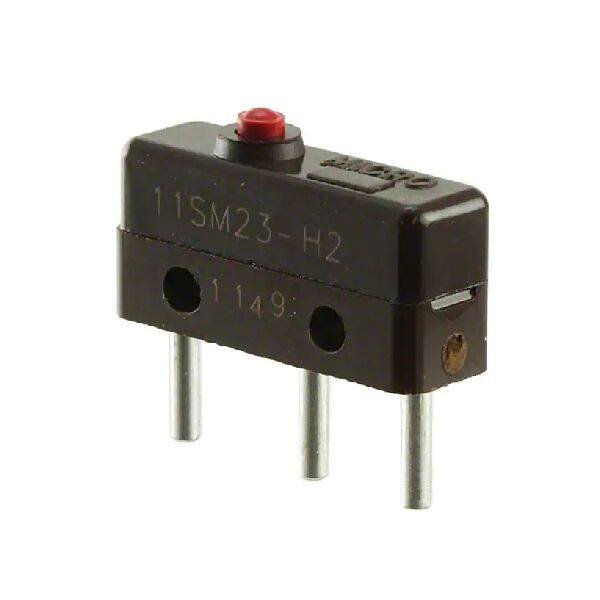

11SM23-H2 Honeywell Micro Switch

Available on order
For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model No. 11SM23-H2
Differentiator low operating force to 2 oz. max; power load switching capability to 11 A; motor load handling capacity to 1/4
HP (Vac)
Ampere rating 0.1 A to 11 A
Circuitry SPDT
Operating force 0.04 oz to 2 oz
Termination quick connect, solder, pcb
Actuator pin plunger, straight lever, roller lever, simulated roller lever, paddle lever
Voltage 115 Vac, 125 Vac, 250 Vac, 30 Vdc
Agency approvals UL, CE, CSA, ENEC, MIL-PRF-8805, FAA-PMA
Agency file information CE: 61058-1; UL: E12252; CSA: LR41372
Operating temperature -54°C to 121°C [-65°F to 250°F]; select catalog listings 204°C [400°F]

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell V7-1C17E9-201 Micro Switch

Description

11SM23-H2 Honeywell Micro Switch

The industry-defining name in snap-action switches, Honeywell MICRO SWITCH premium subminiature switches are designed for repeatability and enhanced product life. The MICRO SWITCH SM Series delivers consistent performance within a range of conditions.
The MICRO SWITCH SM Series’ small size and light weight are combined with ample electrical capacity, precision operation, and extended life. Featuring high precision and repeatability, the SM Series offers gold contacts for low-energy switching and gold bifurcated contacts for maximum reliability. Bifurcated contacts provide parallel redundancy within the SM switch. The SM switch is available for power-duty switching up to 11 A (Vac) or 1/4 HP (Vac).



FEATURES

  • Industry-leading mechanical life of up to 10,000,000
    operations
  • Selection of actuation, electrical termination, and operating
    characteristics along with high-temperature construction
    options
  • Wide temperature range of -54°C to 204°C [-65°F to 400°F]
  • MIL-PRF-8805 qualified listings in a lightweight, small
    package
  • FAA-PMA approvals for commercial aircraft
  • Choice of silver or gold-plated, or gold bifurcated contacts to
    handle a variety of electrical load requirements
  • UL/CSA, cUL, ENEC, and CE approvals
