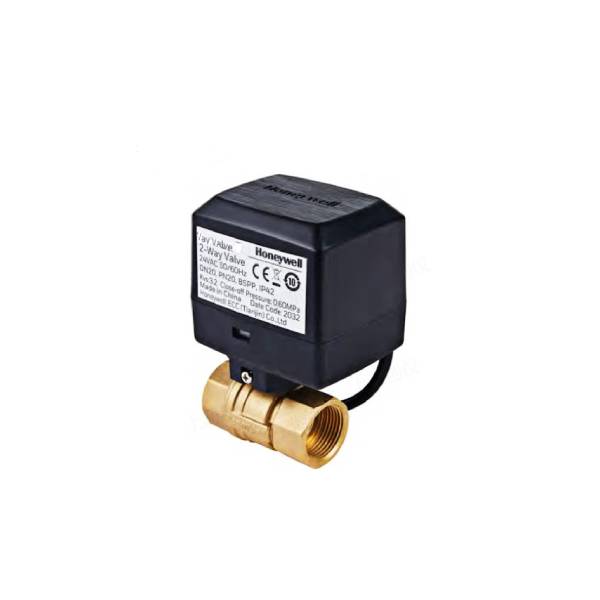

VN32A25PP Honeywell FCU Valve

Available on order

9,329.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model no. VN32A25PP
Operating power supply: 24VAC±10%, 50/60Hz
Control mode: Modulating
Non-spring return
Control signal: 0–10V DC (Input resistance 200KΩ)
Feedback signal: 0–10V DC (Max. 1mA)
Working temperature: 0–65°C
Working relative humidity: 10%–90%RH Non-condensing
Power consumption: ≤5W

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

VN32A25PP Honeywell FCU Valve

VN3 series electric ball valves can be used in residential and commercial buildings to control the flow of hot or cold liquids.
Each set includes an electric actuator and a valve body.
The actuator receives a 0–10V analog signal that controls the valve opening and a 0–10V feedback signal indicates the opening degree of
the valve. The 0–10V control signal adopts incremental control, so when the control signal increases, the valve opening degree increases
accordingly. The valve is fully closed at 0V and fully open at 10V.
The VN3 series offer a wide range of screw thread connection standards for different regions, with two-way and three-way valve
bodies to cover most building control applications.
