Name: VC6013ZZ00 Honeywell FCU Valve
SKU: 59663
Price: 2768.00 INR
Availability: InStock

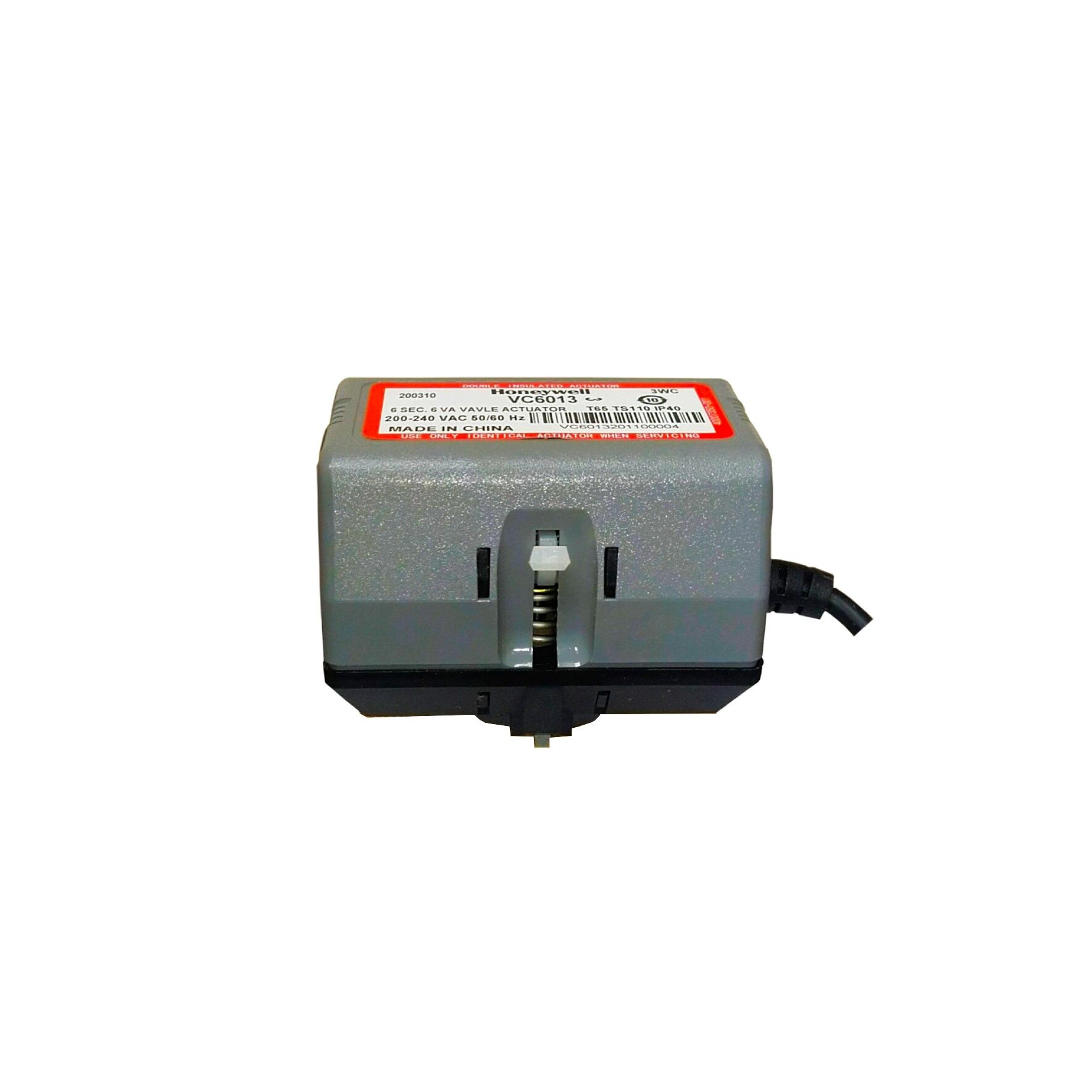

VC6013ZZ00 Honeywell FCU Valve

₹2,768.00 Excluding GST

Available in Stock

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model no.	VC6013ZZ00
Power consumption:	6 Watts Max. at nominal Voltage
Maximum Duty Cycle	15%
Nominal timing	Valve opens in 6 seconds @ 60Hz (20% longer @ 50Hz).
Electrical termination: 3 versions available	(1) Molex(header # 39-30-1060). Requires mating connector (receptacle/housing # 39-01-2060). OR (2) With integral 1 meter [nominal 39″] leadwire cable. OR (3) With 5 feet (1.5 meter) plenum-rated leadwire cable per UL94-5V. Includes plastic adapter for use with 3/8” flexible conduit.
Cable	Yes
Operating ambient temperature	0 to 65°C
Humidity Rating	5-95% RH (non-condensing)
Fluid temperature	1 to 95° C
Shipping & storage temperature	-40 to +65°C [
Atmosphere	Non-corrosive, non-explosive.
Nominal Dimensions (Actuator Only):	3-23/32″ width x 2-11/16″ depth x 2-3/4″ height 94 mm width x 68 mm depth x 70 mm height
Accessories	272866B Valve Flushing Cap
Power	200-240V~ 50-60Hz
Control Input	SPDT

Description

VC6013ZZ00 Honeywell FCU Valve, These 2-position (open/close) control actuators are used with VCZ1000, 1100, 6000 and 6100 series hydronic valves in a normal indoor environment to provide quick opening/closing to control the flow of hot and/or chilled water or glycol solution to 60% concentration. Honeywell VC6013ZZ00 FCU Valve, are designed for on-off “zone” control of heating/cooling systems, or to control individual fan coil, baseboard radiator or convector applications. Depending on the model selected, the actuator can be controlled by a low or line voltage SPST or SPDT controller, such as a room thermostat, aquastat or flow switch. VC80 series valve actuators are designed to be used with hardwired electronic thermostats with series anticipator or powerstealing thermostats. Recommended control thermostats include T8601D, T8401C,T8380 and T8360 families. VC actuators use cam-operated cartridge travel to resist water hammer. Internal limit switches prevent motor overrun.
