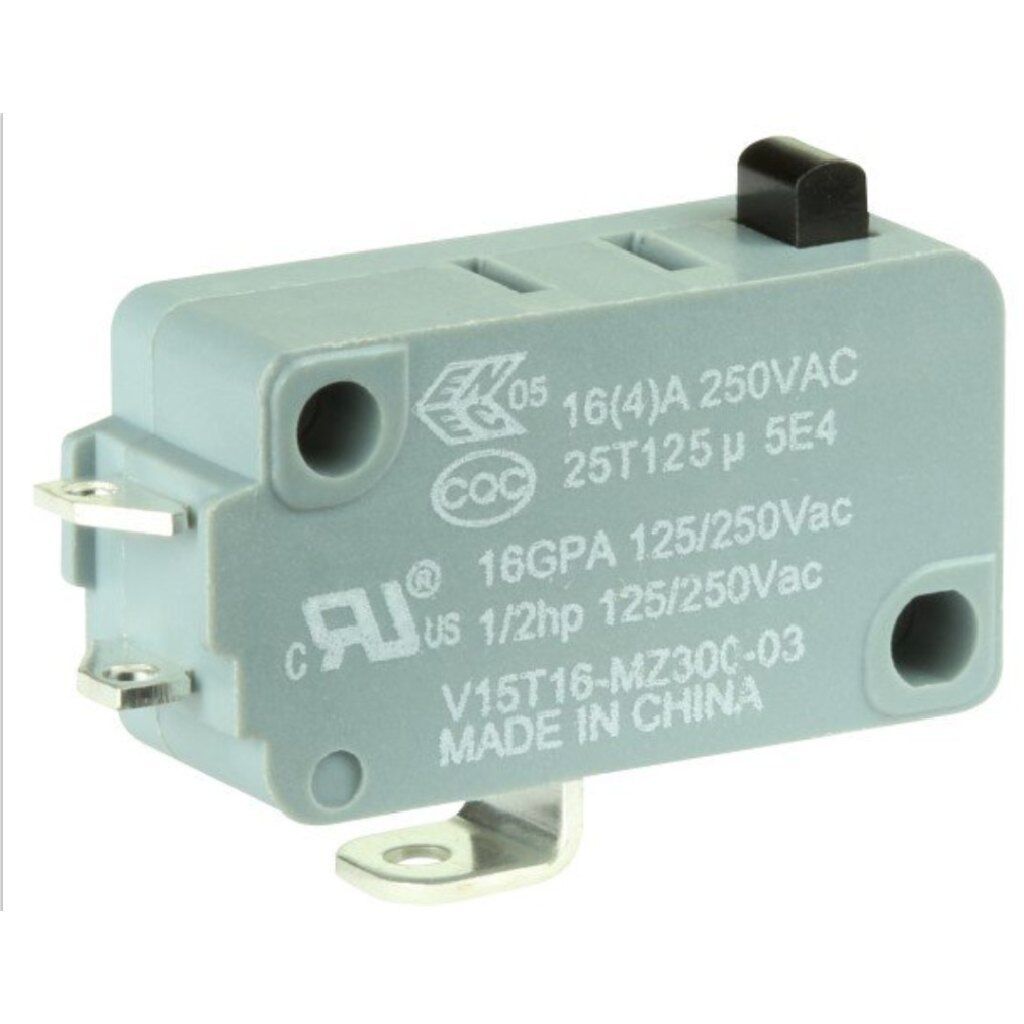

V15T16-MZ300-03 Honeywell Micro Switch

256.00 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model no. V15T16-MZ300-03
Circuitry SPDT
Operating force 300 gf; 2,84 N
Termination Short sholder terminal
Lever type Long straight lever
Agency certification ENEC, CQC, UL, cUL
Operating temperature
(manufacturer specified)
code S: -25 °C to 85 °C [-13 °F to 185 °F]
code T: -25 °C to 125 °C [-13 °F to 257 °F]
code H: -25 °C to 150 °C [-13 °F to 302 °F]
Mechanical life (cycles) 1 million cycles (except for 200g versions of V15S05 and V15T10 which are 500,000 cycles)
Contact material silver, gold-plated | cadmium-free option available
Housing material PBT thermoplastic polyester (standard)
PET thermoplastic polyester (V15H high temperature, 150 °C [302 °F])
Electrical Rating 16 A 125 Vac/250 Vac

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

Honeywell’s MICRO SWITCH V-Basic Standard Switch, V15 Series is an electromechanical switch designed to provide outstanding value in a reliable global package. This switch is often ideal for “low-cost-of-failure” applications, where the cost is minimal to replace or service any failure related to the switch. With a wide variety of operating forces, and amperage ratings, the V15 is designed for numerous types of applications.
Available in both pin plunger and levered styles, the V15 Series also offers a multitude of termination styles to fit almost any application.

FEATURES
• Broad range of electrical loads: 0.1 A, 5 A, 10 A, 16 A, 22 A, 26 A
• Long service life: over one million mechanical operations
• Gold contacts are also available for controlling logic level/ low energy circuits
• World-wide package size acceptance
• UL/CSA, cUL, ENEC, and CQC approvals
• Variants with cadmium-free contacts available

POTENTIAL APPLICATIONS
• Appliances
• Furnaces
• Gaming machines
• Ice makers
• Power washers
• Vending machines
