Name: V15S05-CZ100A05-01 Honeywell Micro Switch
SKU: 58847
Price: 195.00 INR
Availability: InStock

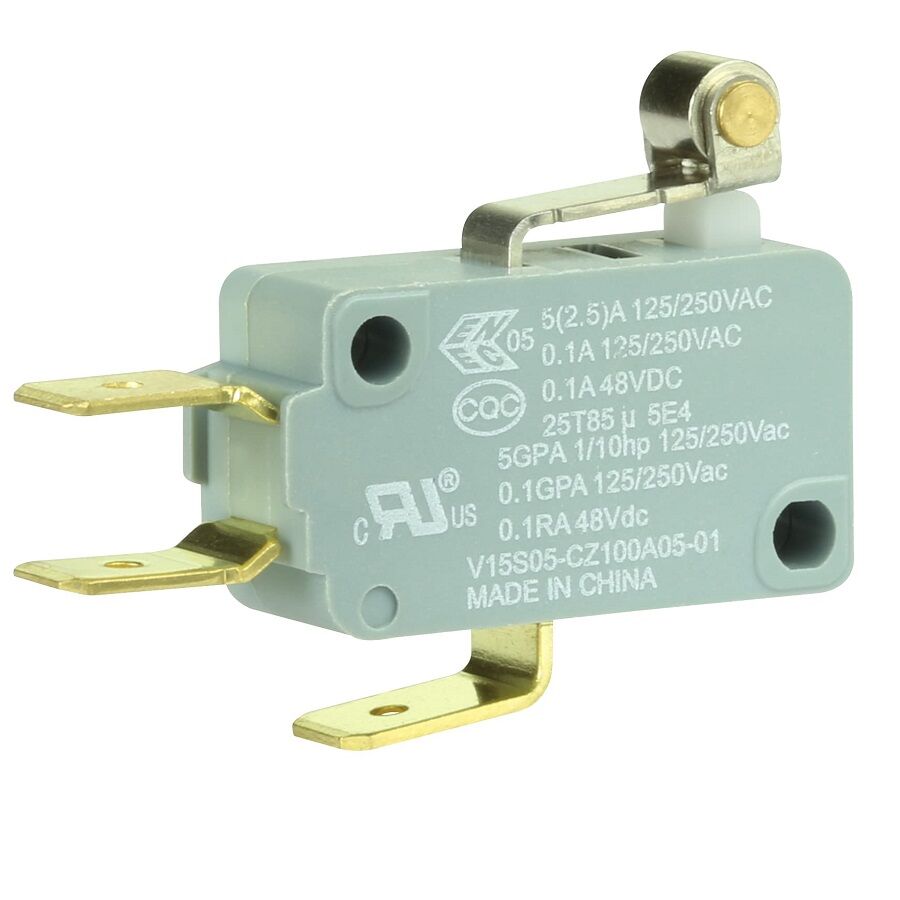

V15S05-CZ100A05-01 Honeywell Micro Switch

₹195.00 Excluding GST

Available in Stock

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	V15S05-CZ100A05-01
Type	V15 Series Standard Basic Switch
Lever Type	Roller lever
Lever Position	Far from pin plunger
Electrical Rating	0.1 A 48 Vdc/125 Vac/250 Vac 5 A 125 Vac/250 Vac
Temperature Rating	85 °C
Circuitry	SPDT
Housing Type	Flat
Terminal Type	Quick connect 6,30 mm x 0,80 mm [0.250 in x 0.032 in]
Operating Force	100 gf; 0,96 N

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

V15S05-CZ100A05-01 Honeywell Micro Switch , V15 Series is an electromechanical switch designed to provide outstanding value in a reliable global package. Honeywell V15S05-CZ100A05-01 Micro Switch is often ideal for “low-cost-of-failure” applications, where the cost is minimal to replace or service any failure related to the switch. With a wide variety of operating forces, and amperage ratings, the V15 is designed for numerous types of applications. Available in both pin plunger and levered styles, the V15 Series also offers a multitude of termination styles to fit almost any application.

VALUE TO CUSTOMERS
• Wide choice of electrical ratings: 0.1 A, 5 A, 10 A, 16 A, 22 A, 26 A
• Certified for global use: UL/cUL, ENEC, CQC
• Available with pin plungers or integral levers to meet multiple
application and equipment requirements
