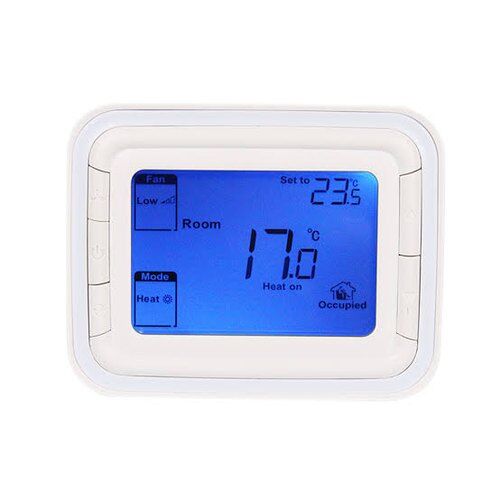

T6861H2WB Honeywell LCD Digital Thermostat

4,812.00 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model Number T6861H2WB
Type Horizontal Digital Thermostat
Backlight Blue
Color Ring White/Blue
2-pipe/4-pipe 2/4
Power supply 220V
Accuracy +/-1oC at 21oC
Installation Installed on 86×86mm junction box or US2×4 inch
Operation temperature -18~49oC
Cycle times 100,000 times
Setpoint range 10~32oC
Display range 0~37oC
Protection Class IP20

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell T6861H2WB LCD Digital Thermostat

Description

T6861H2WB Honeywell Digital Thermostat, T6861 digital thermostats are designed for application of 3-speed fan and valves in fan coil system. Including: 2-pipe cool only/heat only/manual changeover and 4-pipe manual or automatic changeover Ventilation mode Manual or automatic 3-speed fan control Water valve control Fan speed can be selected to automatic or manual 3-speed control mode. In ventilation mode, fan only support manual speed control.

Features

  1. Super modern appearance design, suitable for office, hotel and residential building
  2. Horizontal and vertical model available for variant application
  3. Slim design, direct installation on 86 size box
  4. Stylish and elegant blue/green backlight with blue/ green colour ring
  5. 2-pipe/4-pipe integrated into one unit with easy configuration
  6. Big LCD display with English and icons
  7. Easy to install and set-up
  8. Time on/off function
  9. Selectable room temperature or setpoint display
  10. Manual or automatic fan speed selection
  11. Remote temperature sensor
  12. Energy saving mode activation by button press or dry contact (key card)
  13. Cycle per Hour (CPH) function
  14. Adjustment of display room temperature
  15. There are two temperature units available, namely o C or o F.

  16. The system is capable of retaining the user settings even in the event of a power outage. Moreover, the system does not need a constant power supply to retain the user preferences.
  17. Freezing protection function available
  18. Lock or unlock keys or part of keys in Installer Setup
  19. Heat and cool setpoint limitation for energy saving
