Description

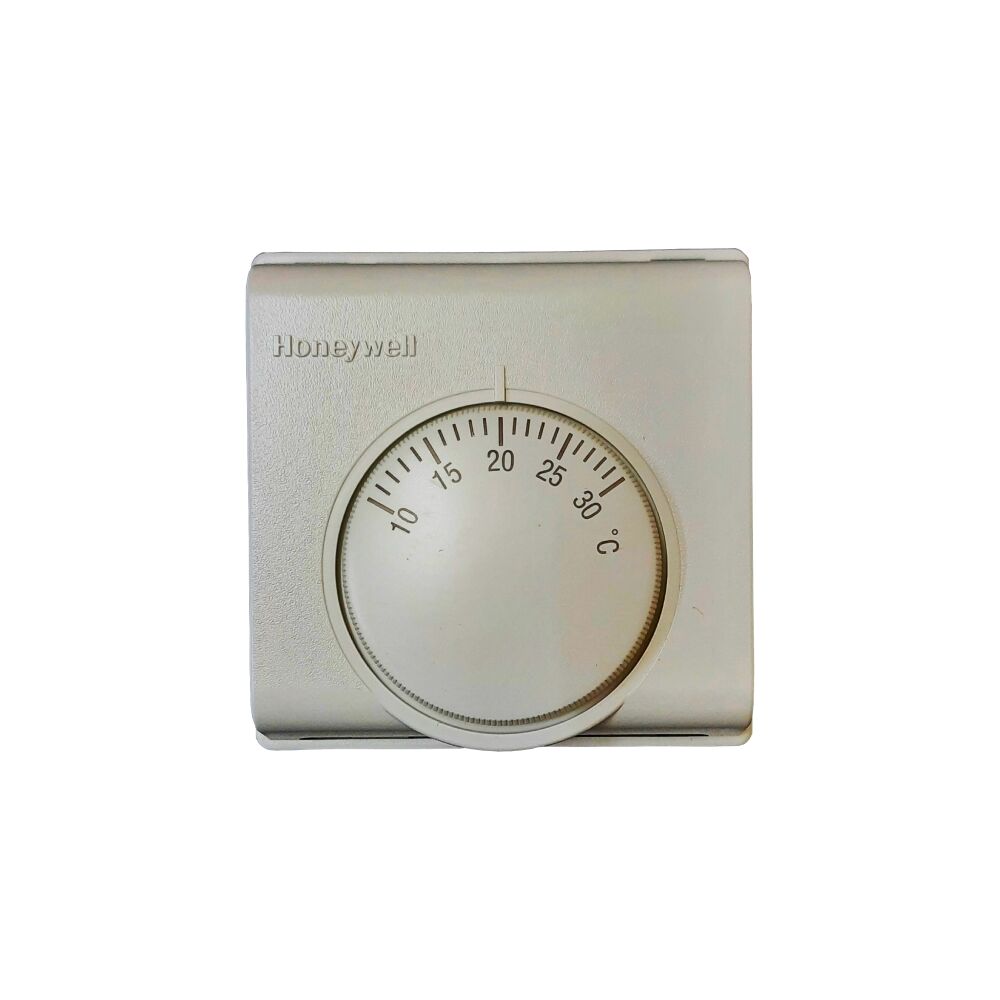

T6360A5013 Honeywell Thermostat , T4360/T6360 range of thermostats are designed to provide automatic ON/OFF control for gas valves, circulation pumps, relays and zone valves in all heating, cooling, or heating/cooling installations where single or changeover switching up to 10 A (resistive load) or 3 A (inductive load) is required. In addition a 16 A (resistive load) variant is available for direct switching of high current carrying loads. Nine models of the thermostat are available, in a wide range of feature
combinations.
FEATURES of Honeywell Thermostat T6360A5013
- Dual diaphragm sensing element for precise temperature control
- Modern and attractive design suitable for living spaces
- Option for heat anticipation to match specific applications
- T6360 model includes changeover contacts for cooling or heating/cooling applications
- Versions available with switches for positive-off selection or summer/winter operation
- You can mount it directly onto a wall or conduit box.
- Terminals have built-in conductor clamps for secure wiring
- Double insulated for operation without an earth wire, with an earth “parking” terminal on selected models
- Optional extras include:
- Range stops (F42006646-001)
- Tamperproof cover (F42007110-001 opaque or F42007110-002 transparent)
- Additional wallplate for special mounting requirements (F42007789-001)
OPERATION
Sensing Element
The thermostat sensing element comprises two circular, flexible metal plates welded together at the rims encapsulating a liquid whose pressure changes greatly in response to small variations in temperature. In effect, due to the expansion/contraction of the dual diaphragm in response to the ambient temperature changes, it functions as a ‘bellows’. When this movement occurs, it triggers a snap-acting switch that is rated to control the heating or cooling circuit.
Heat Anticipator
If your system has a high heating ramp rate, it’s advisable to use a thermostat with a heat anticipator. This will overcome the overshoot and undershoot problems often found in this type of installation.
Indicator Lamp
A ‘potential-free’ indicator lamp is available on some models. You can wire this in various ways, and each method can indicate when the power has been switched to the load as required.
