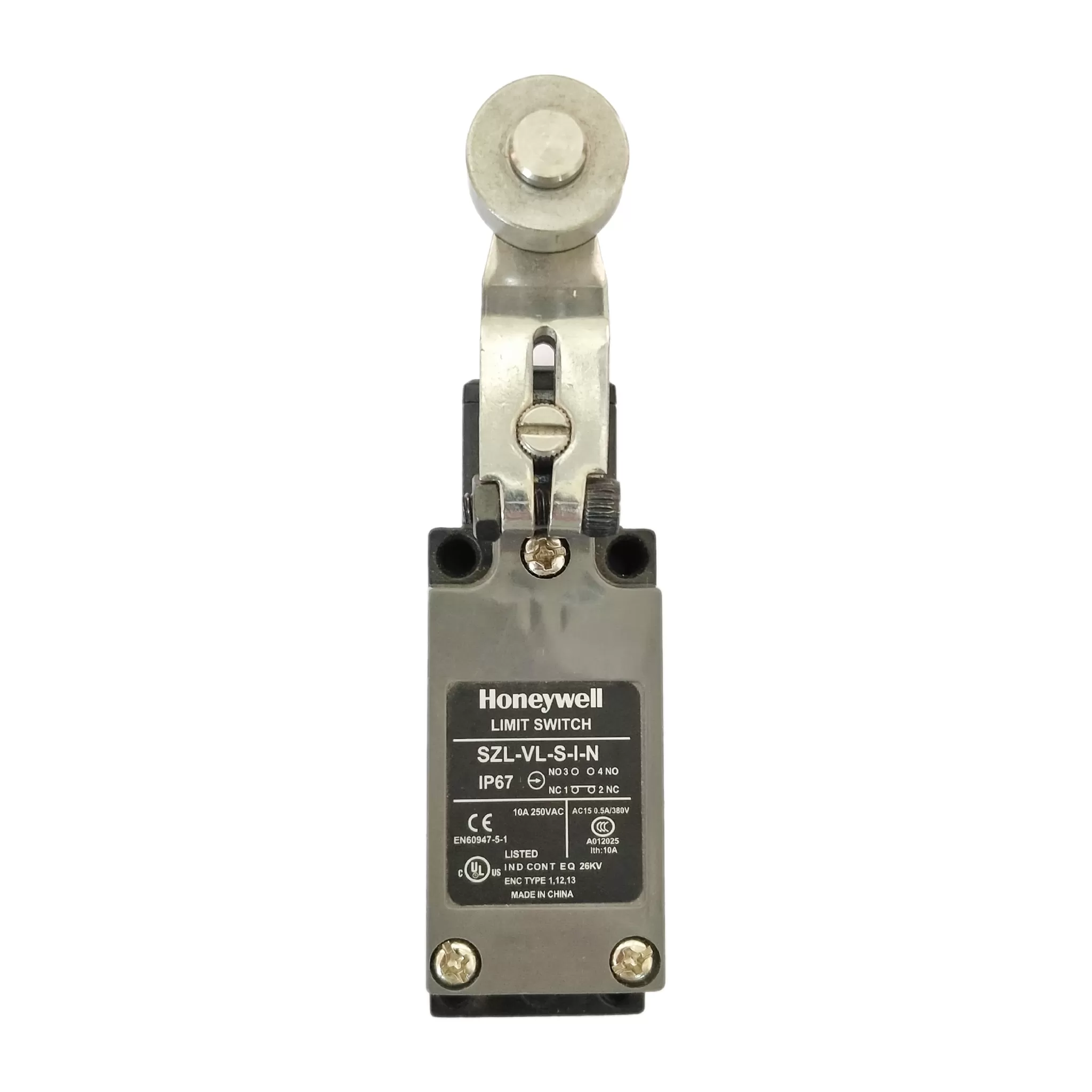

Name: SZL-VL-S-I-N Honeywell Mini Limit Switch
SKU: 57573
Price: 520.00 INR
Availability: InStock

SZL-VL-S-I-N Honeywell Mini Limit Switch

₹520.00 Excluding GST

Available in Stock

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	SZL-VL-S-I-N
Type	Side rotary, fixed lever steel roller, Ø18 x 6,5 Miniature industrial limit switch
Housing material	Die-cast metal housing with glass-filled, flame-retardant thermoplastic cover UL 94 flame spread testing: V-0 rated
Contact Material	Silver Alloy
Contact design	Snap-action (all versions) Positive-opening contacts (side rotary version only)
Electrical Connection	Conduit entry or cable gland
Electrical Ratings	AC-15 A300 DC-13 Q300
Dielectric Voltage	1890 Vac for metal housing, 1890 Vac between all terminals to enclosure after durability test
Impulse Voltage	2500 Vdc
Thermal current (Ith)	10 A/250 Vac
Leakage Current	< 10 mA
Humidity	95 %RH
Shock	30 G, conforming to IEC 60068-2-27
Vibration	10 G, 10 Hz to 55 Hz displacement amplitude 0,75 mm, conforming to IEC 60068-2-6 (wobble excluded)
Operating Temperature	-20°C to 70°C (with no icing)
Operating speed	0,05 mm/s to 2 m/s (based on pin plunger limit switch)
Operating frequency	Mechanical: 120 ops/min; Electrical: 30 ops/min
Mechanical life	10M cycles @ 120 cpm max
Electrical life	0.5M cycles @ 30 cpm max. under the rated resistance load
Weight	120 g to 150 g
Approvals	CCC, CE, cULus
Pollution Degree	3
Environmental Sealing	IP67
COO	China

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

The SZL-VL-S-I-N Honeywell Limit Switch, SZL-VL-S Series miniature-type limit switch is designed for use in applications where limited mounting space is available. With an IP67 seal rating, these switches are suitable for OEM machinery that requires a rugged and reliable limit switch capable of being mounted in space-restricted applications. Its design enhances the ease of wiring with ample wiring space and has an optional cable gland for faster and more efficient wiring termination. The Honeywell Mini Limit Switch SZL-VL-S-I-N, and SZL-VL-S Series switches have a split-housing design made of a die-cast body and head with a glass-filled, flame-retardant thermoplastic cover. The cover is removable for easy access and ease of installation. Modular actuator head design allows for configurations to meet a variety of application needs. The SZL-VL-S are available globally and carry certifications for applications around the world

FEATURES
1) Approvals: CCC, CE, cULus
2) Sealed to IP67, NEMA 1, 12, 13
3) Snap-action contacts
4) Die-cast metal housing with a glass-filled, flame-retardant thermoplastic cover
5) Stainless steel levers with either steel or nylon rollers
6) Variety of actuators
7) Positive-opening contacts (side rotary version only)
8) RoHS compliant
9) Utilization category: AC-15 A300 (380 Vac/0.5 A) DC-13 Q300 (220 Vdc/0.05 A)
10) Mechanical life rating: 10 million cycles
11) Electrical life rating: 0.5 million cycles

APPLICATIONS
1) Scissor/boom position detection
2) Vehicle accessibility lifts
3) Escalators/Motorized walkways
4) Machine tools
5) Mobile light towers
6) Packaging equipment
7) Conveyor equipment
8) Overhead doors
9) Agriculture equipment
10) Rail passenger cars (internal doors)
