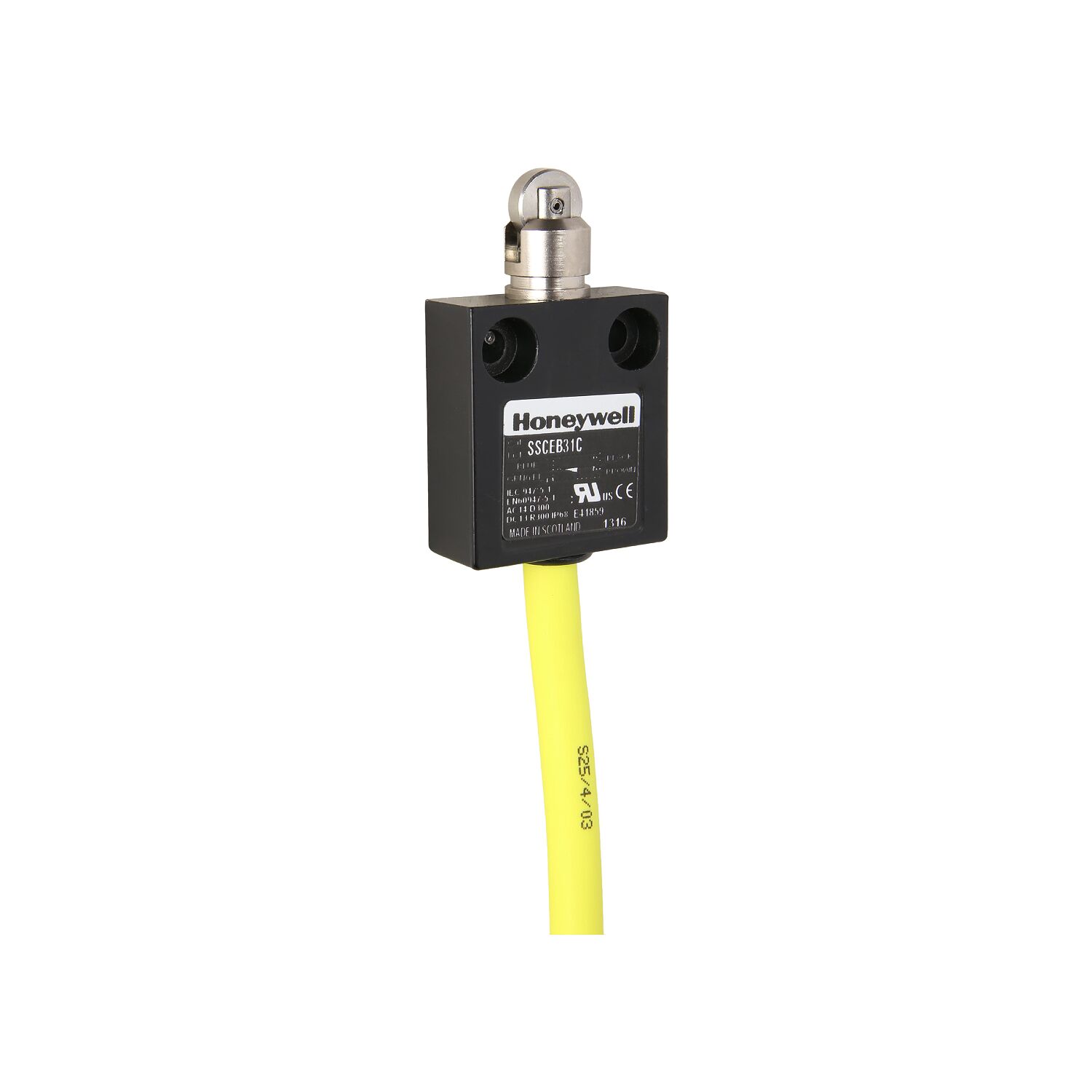

SSCEB31C Honeywell Limit Switch

Available on order
For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product Description
Brand Honeywell
Model No. SSCEB31C
Connector Bottom exit PUR cable
Actuator type Top Roller Plunger, Parallel
Mechanical life up to 10 million operations
Degree of protection IP66/67, IP68
Temperature range Operating: -40 °C to +90 °C
Shock 50 g conforming to IEC 68-2-27
Vibration 10 g conforming to IEC 68-2-6

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell Limit Switch SZL-VL-S-A-N

Description

Honeywell SSCEB31C Limit Switch is The Super sealed CE Series Miniature limit switch has been designed for reliability in the harshest of environments. Its robust design, corrosion limiting features, flexible PUR cable and super sealing allows it to operate fully submerged in a range of fluids. Its small size allows operation in confined spaces. A range of different actuators offers flexibility in application.

Features

  1. Fully sealed – capable of working when submerged\
  2. Compact construction
  3. Pre-wired or connector versions
  4. Die-cast zinc housing
  5. Wide selection of actuators
  6. Gang mounting capability
  7. Variable length PUR cable
  8. Side and bottom exit cable/connector
  9. Simple two-screw mounting
  10. IP66/67, IP68 sealing

Benefits

  1. Suitable for difficult operating environments
  2. Suitable for applications where space is at a premium
  3. Fast and easy to install
  4. Application flexibility
  5. Multiple switching in small spaces
  6. Enhanced choice for application
  7. Suitable for aggressive environments

Low energy switching

In today’s demanding age of low energy controls, electromechanical switches are frequently used in interface directly with PLCs and other low energy devices. To accommodate this requirement Super sealed CE offers a gold plated contact version of the standard basic switch. This improves reliability of switching at low currents and voltages by protecting the contact surfaces from contamination during operation or storage prior to use. Standard silver contacts have the disadvantage in that the contact may tarnish under certain environmental conditions, e.g. in the presence of moisture.

Low energy basic switches are rated as follows:
Operating Voltage Ue 1 to 50 Vac or Vdc
Operating Current Ie 1 to 100 mA
