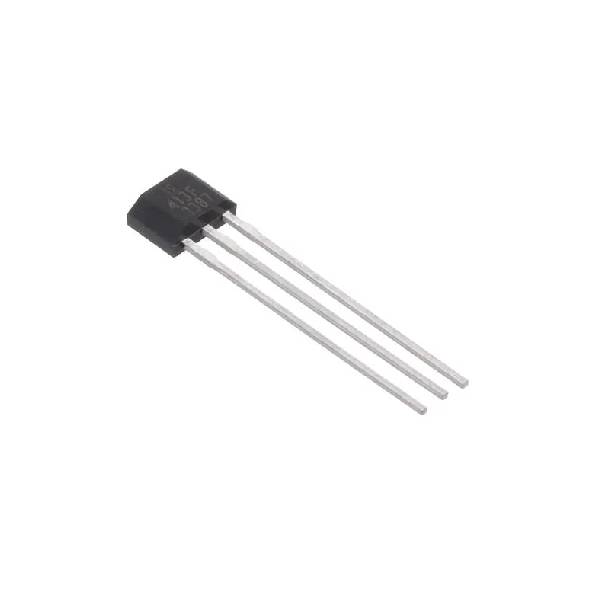

SS413F Honeywell Hall Effect Sensor

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	SS413F
Operating Supply Current	6.5 mA
Maximum Output Current	20 mA
Operating Supply Voltage	3.8 V to 30 V
Minimum Operating Temperature	– 40 C
Maximum Operating Temperature	+ 150 C

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

SS413F Honeywell Hall Effect Sensor .

DESCRIPTION
The SS400F and SS400G Series sensors are small, versatile digital Hall-effect devices that are operated by the magnetic field from a permanent magnet or an electromagnet, and are designed to respond to alternating North and South poles or to a South pole only. Bipolar, latching and unipolar magnetics are available.
Band gap regulation provides stable operation over 3.8 Vdc to 30 Vdc supply voltage range. These sensors are capable of continuous 20 mA sinking output and may be cycled as high as 50 mA max. Its 3.8 V capability allows for use in many potential low voltage applications.
