Description

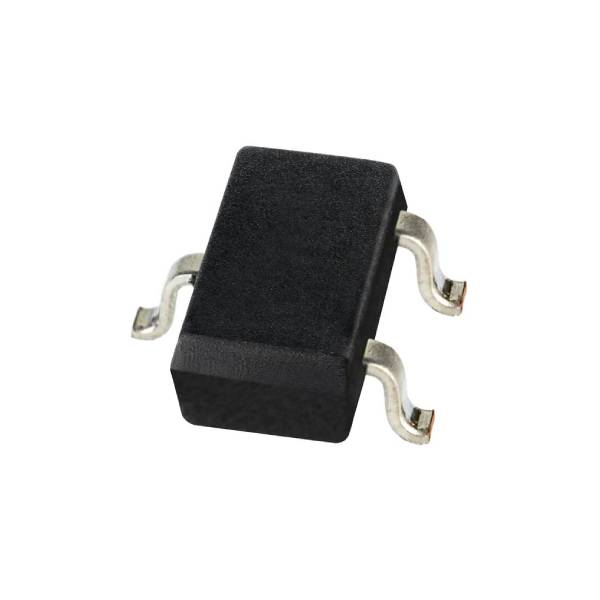

The SS39ET SS39ET/SS49E/SS59ET Series low-cost linear Hall-effect sensor ICs are small, versatile devices that are operated
by the magnetic field from a permanent magnet or an electromagnet. They are designed and manufactured for cost
competitiveness.
Features:
- Miniature and subminiature construction: Designed for compact designs with tight space requirements Energy efficient: Low current consumption of 6 mA at 5 Vdc
- Easy PC board interface: Single current sourcing output for common electronic circuits
- Circuit design flexibility: Voltage range of 2.7 Vdc to 6.5 Vdc
- Low noise output: Virtually eliminates the need for filtering
- Stable output: Thin film resistors improve accuracy
- Wide range of environments: Temperature range of -40 °C to 100 °C [-40 °F to 212 °F]
- Application flexibility: Responds to either positive or negative Gauss
POTENTIAL APPLICATIONS
• Industrial: Speed and RPM (revolutions per minute) sensing,
tachometer, counter pickup, flow-rate sensing, brushless dc
(direct current) motor commutation, motor and fan control,
robotics control
• Transportation: Speed and RPM (revolutions per minute)
sensing, tachometer, counter pickup, motor and fan control,
electric window lift, convertible roof position
• Medical: Motor assemblies, medication dispensing control
