SNG-QPMB-000 Honeywell Speed and Direction Sensor

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	SNG-QPMB-000 (4-wire quadrature speed and direction sensor)
Supply voltage	4.5 V to 26 V
Output signal type	square wave
Output signal duty cycle	50% ±10%
phase shift	90° ±45°
load current	40 mA max.
Rise time	10 us max
Fall time	5 us max.
Frequency	frequency
Short circuit protection	50 mA max.
Supply current	12 mA-18 mA
Sensing air gap	0,0 mm to 2,0 mm [0.0 in to 0.08 in]
Materials: housing bushing O-ring cable4	PBT brass fluorocarbon with PTFE coating, ø11,8 mm [ø0.47 in] OD x ø1,80 mm [ø0.07 in] CS EVA, four conductor, 36 AWG, 28 strand, ø5,2 mm [ø0.20 in] jacket
bore size	ø15,15 mm to ø15,40 mm [ø0.60 in to ø0.61 in]
torque	10 N m [88.5 in-lb] max. with M6 X 1.0 bolt
Operating temperature	-40°C to 150°C
Thermal shock, air to air	-40°C to 150°C [-40°F to 302°F], 60 min. soak, <3 s transfer, 500 cycles
Humidity	95% humidity at 38 °C [100 °F], 240 hr
Salt fog	5% salt solution by mass at 35 °C [95 °F], 96 hr
Thermal saline dunk	100°C to 25°C [212°F to 77°F] air to liquid, 5% saline, 10 cycles
High temperature exposure with power	150°C [302°F], 13.5 Vdc, 1 kOhm load, 500 hr
Vibration	3 perpendicular axes, 48 hr per axis-29.28 GMS, 50 Hz to 2000 Hz MIL-STD-202-214
Degree of protection	IP69K
Resistance to fluids	general under-the-hood automotive fluids
Connection Type	Cable with leads, straight exit
Housing Length	45 mm [1.77 in]

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

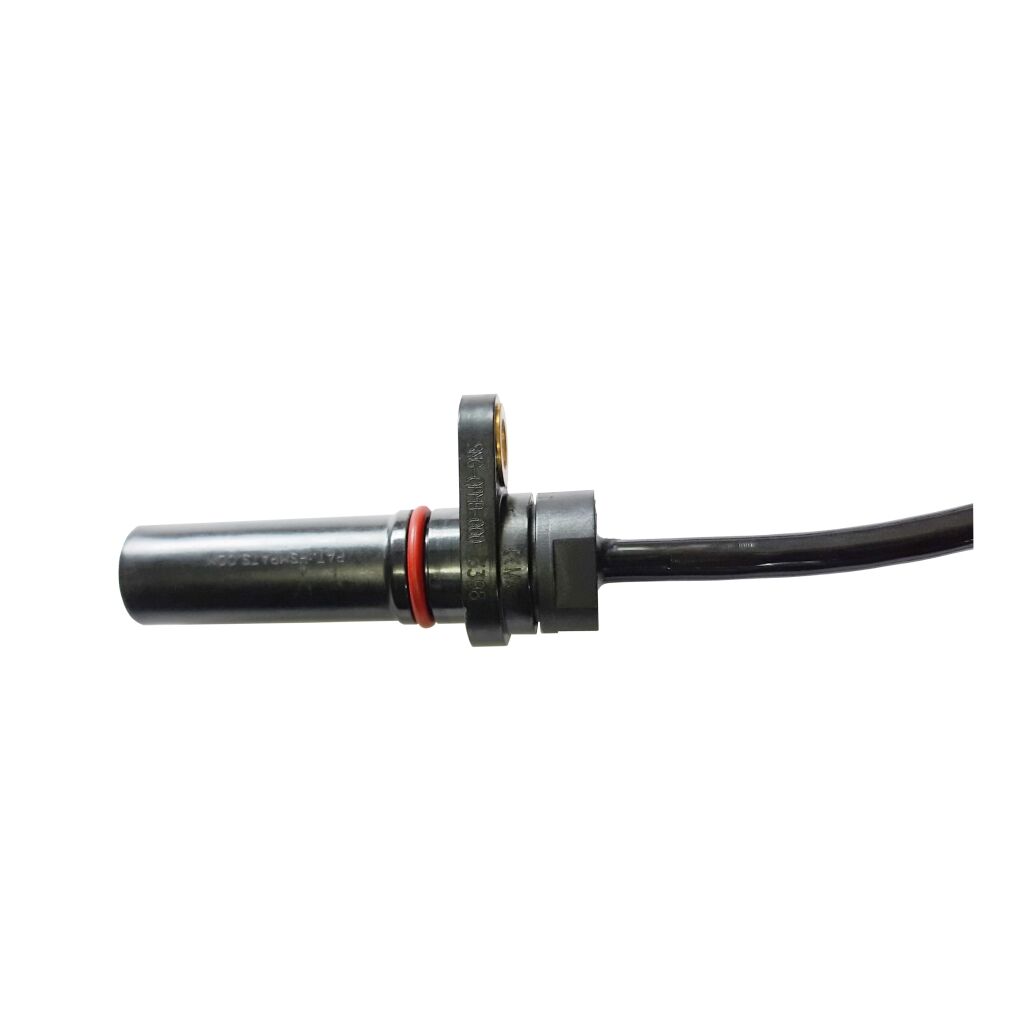

Honeywell SNG-QPMB-000 Speed and Direction Sensor, plastic housing, 45 mm [1.77 in] housing length, 500 mm [19.7 in] cable, straight exit

DESCRIPTION
Honeywell’s SNG-Q Series Quadrature Speed and Direction Sensors are designed to provide both speed and direction information. Speed information is provided from digital square wave outputs; direction is provided using a quadrature output with signals 90° phase shifted from each other.

The quadrature output enables the determination of the target direction through phase shifting of the output, which results in lead/lag phase shifting.

VALUE TO CUSTOMERS

Higher reliability: IP69K rating, EMC radiated immunity protection, O-ring seal and wide operating temperature range:
– Improves equipment uptime
– Minimizes service costs
– Provides resistance to high electrical noise
– Provides resistance to moisture intrusion
– Wide operating temperature range
– Attempts to substantially reinforce the customer’s brand equity
Cost-competitive: Designed and manufactured using a platform-based approach that enables better cost competitiveness and mechanical and electrical configurability for customers.
Enhanced accuracy: Dual differential Hall-effect sensor IC technology allows an enhanced ability to detect small target features.
Flexible: Wide operating temperature range, robust electrical
noise immunity and enhanced environmental sealing
capability allows flexibility of use in the application.
Expedites installation: O-ring seal for use in pressure
applications and a fixed mounting flange allows for a
the simpler installation process, using one fastener.

FEATURES of Honeywell SNG-QPMB-000 Speed and Direction Sensor

Wide operating temperature range: -40ºC to 150ºC [-40°F to 302°F]
Environmental sealing: Moisture ingress protection rated to IP69K
Robust electrical noise immunity: Electrical noise radiated immunity (EMC) rated to 100 V/m
High frequency switching capability: 3 Hz to 20 kHz
Direction information: From phase-shifted dual output signals
O-ring seal: Enables environmental sealing to the mounting surface
Supply voltage range: 4.5 V to 26 V
CE certified

POTENTIAL APPLICATIONS

Industrial:
• AC induction motors in material handling, agriculture, and construction machines: May be used to help control power delivered by the ac induction motor
• Escalators and elevators: May be used to help control speed and position

Transportation:

Hybrid electric transmissions in heavy duty trucks, buses, agriculture, and construction machines may help control the power regulation of the hybrid system.
Material handling, agriculture, and construction machines may use wheel speed detection to detect the speed and direction of the wheels, thereby determining the speed and direction of the machines.
Hybrid engines in heavy duty trucks, buses, agriculture, and construction machines may help control the power regulation of the hybrid system.
