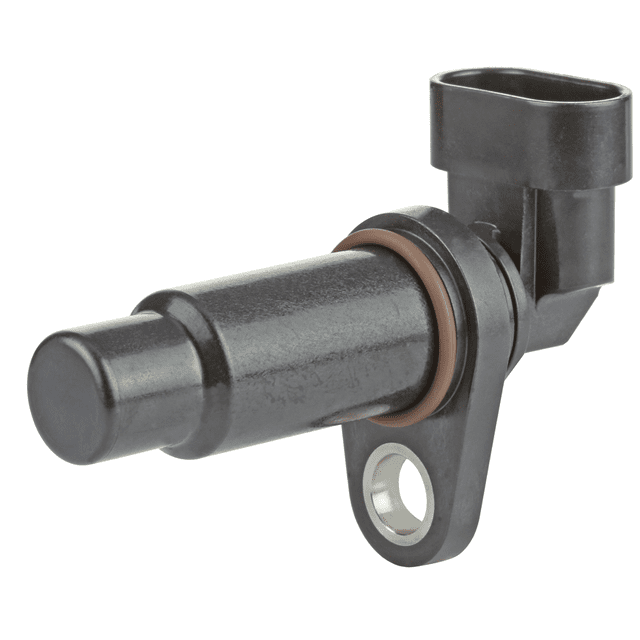

SNG-SPRC-002 Honeywell Speed Sensor

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model	SNG-SPRC-002
Product Type	Speed Sensor
Supply Voltage	4.5 V to 24 V
Supply Current	20 mA max.
Reverse Voltage Protection	-24 V
Over Voltage Protection	26.5 V
Short Circuit Protection	16 V
Load Dump	5b
Insulation Resistance	>10 MOhm at 500 Vdc
Radiated Immunity	10 kHz to MHz, 60 m/V 200 MHz to 2.7 GHz, 100 V/m 800 kHz MHz to 1000 MHz, 3 m/V
Bulk Current Injection	100 mA
ESD	±4 kV contact, ±8 kV air

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

SNG-SPRC-002 Honeywell Speed Sensor

Honeywell’s SNG-S Series Speed Sensors use a magnetically biased Hall-effect integrated circuit (IC) to accurately sense movement of ferrous metal targets. The specially designed IC and a permanent magnet are sealed in rugged, probe-type packages. The IC detects the alteration of the magnet’s flux density when it is approached by ferrous metal. A sensor positioned at the circumference of a revolving gear wheel detects the teeth and spaces, and supplies a digital pulse output with frequency proportional to gear wheel speed. Optimum performance is dependent upon a combination of variables such as target material, geometry and speed, sensor/target gap, and environmental temperature.
