Description

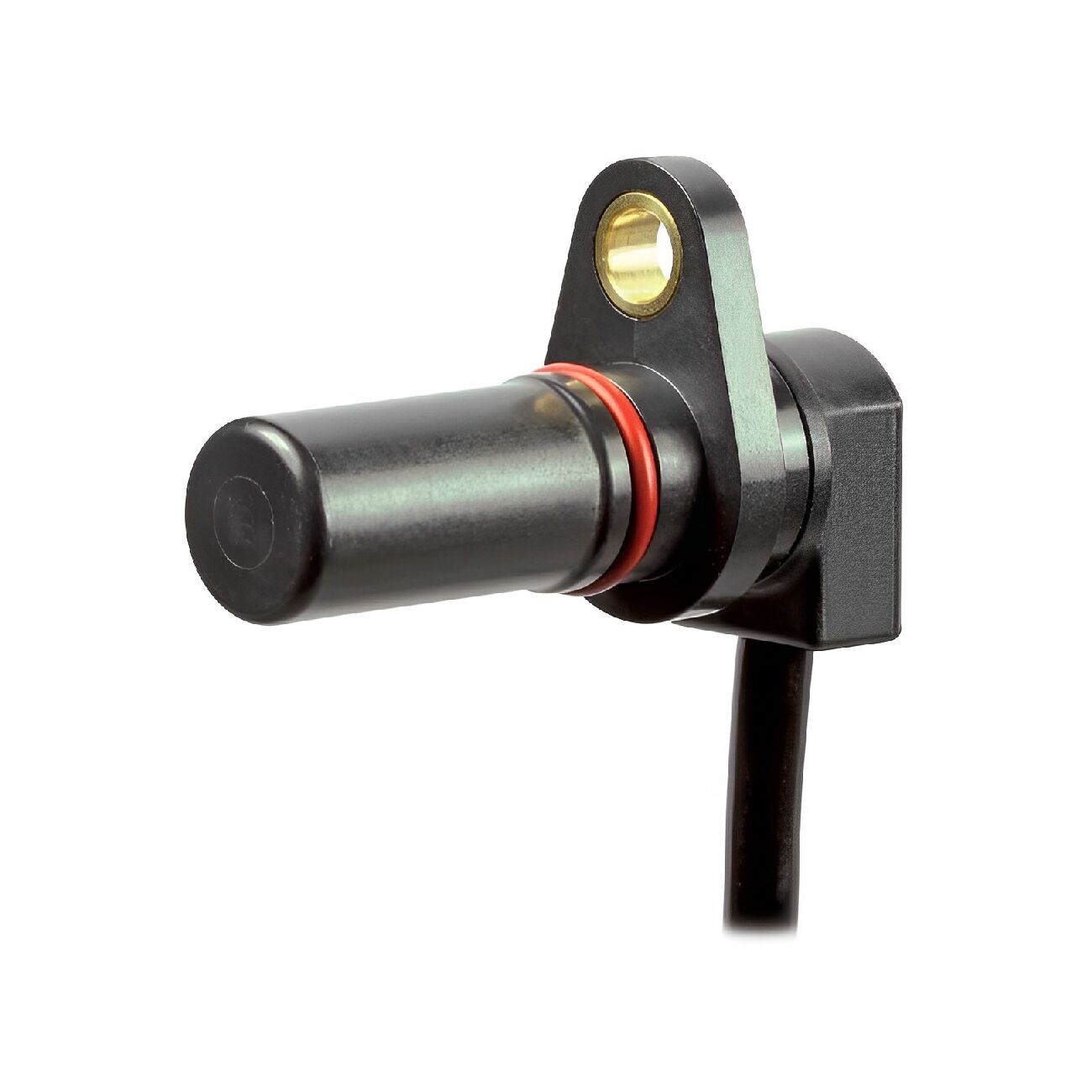

SNG-QPLA-000 Honeywell Speed Sensor is designed to provide both speed and direction information. Speed information is provided from digital square wave outputs; direction is provided using a quadrature output with signals 90° phase shifted from each other.
Performing output lead/lag phase shifting using the quadrature output enables the determination of the target direction.
FEATURES of Honeywell SNG-QPLA-000 Speed Sensor
- Wide operating temperature range: -40ºC to 150ºC [-40°F to 302°F]
- Environmental sealing: Moisture ingress protection rated to IP69K
- Robust electrical noise immunity: Electrical noise radiated immunity (EMC) rated to 100 V/m
- High frequency switching capability: 3 Hz to 20 kHz
- Direction information: From phaseshifted dual output signals
- O-ring seal: Enables environmental sealing to the mounting surface
- Supply voltage range: 4.5 V to 26 V
- CE, UKCA certified
POTENTIAL APPLICATIONS
Industrial:
- AC induction motors in material handling, agriculture, and construction machines: It can help control the power delivered by the AC induction motor.
- Escalators and elevators: It can help control speed and position.
Transportation:
- Hybrid electric transmissions in heavy duty trucks, buses, agriculture, and construction machines actively control the power regulation of the hybrid system.
- Wheel speed detection in material handling, agriculture, and construction machines: May be used to detect the speed and direction of the wheels,
which translates to the speed and direction of the machine
