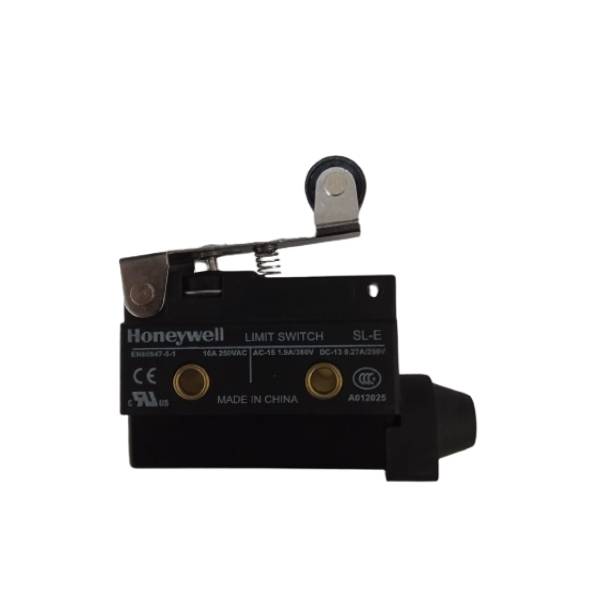

Product Details:
| Product | Description |
|---|---|
| Brand | Honeywell |
| Model no. | SL-E |
| Contact Type, Contact Material | SPDT, Silver Alloy |
| Actuator | Lever |
| Operating Speed | 0.05mm ~ 2m/s |
| Operating Frequency | Mechanically：120 ops/min, Electrically：30 ops/min |
| Rated Current/Voltage | 10A/250VAC (EN60947-5-1) |
| Contact Resistance | <25mΩ (initial) |
| Insulation Resistance | >100MΩ@500V DC |
| Dielectric Strength | 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying part |
| Service Life | Mechanically：5,000,000 ops Electrically：500,000 ops at maximum rating |
| Shock | Free position:<10G, Maximum position：<30G |
| Vibration | 10 to 55 Hz, 1.5 mm double amplitude (excluding spring coil type) |
| Operating Temperature | -20 to 60℃ |
| Certification | CE, CCC, UL (E313809) |
| Degree of Protection | IP64 |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.
FEATURES
Asia standard dimension
Design for small mounting space.
10A current capacity
Long mechanical life 1×107 operations
Wide range of actuators available
UL, cUL, CCC, CE approved
IP65 (standard type) and IP67 (precision type) Rated
Precision type SLP has built-in IP67 rated cable gland
(also available in M12 quick connector type)
Applications:
General Machinery
Conveyer, Transportation Equipments
Specialty Machinery
Packaging Mechinery
