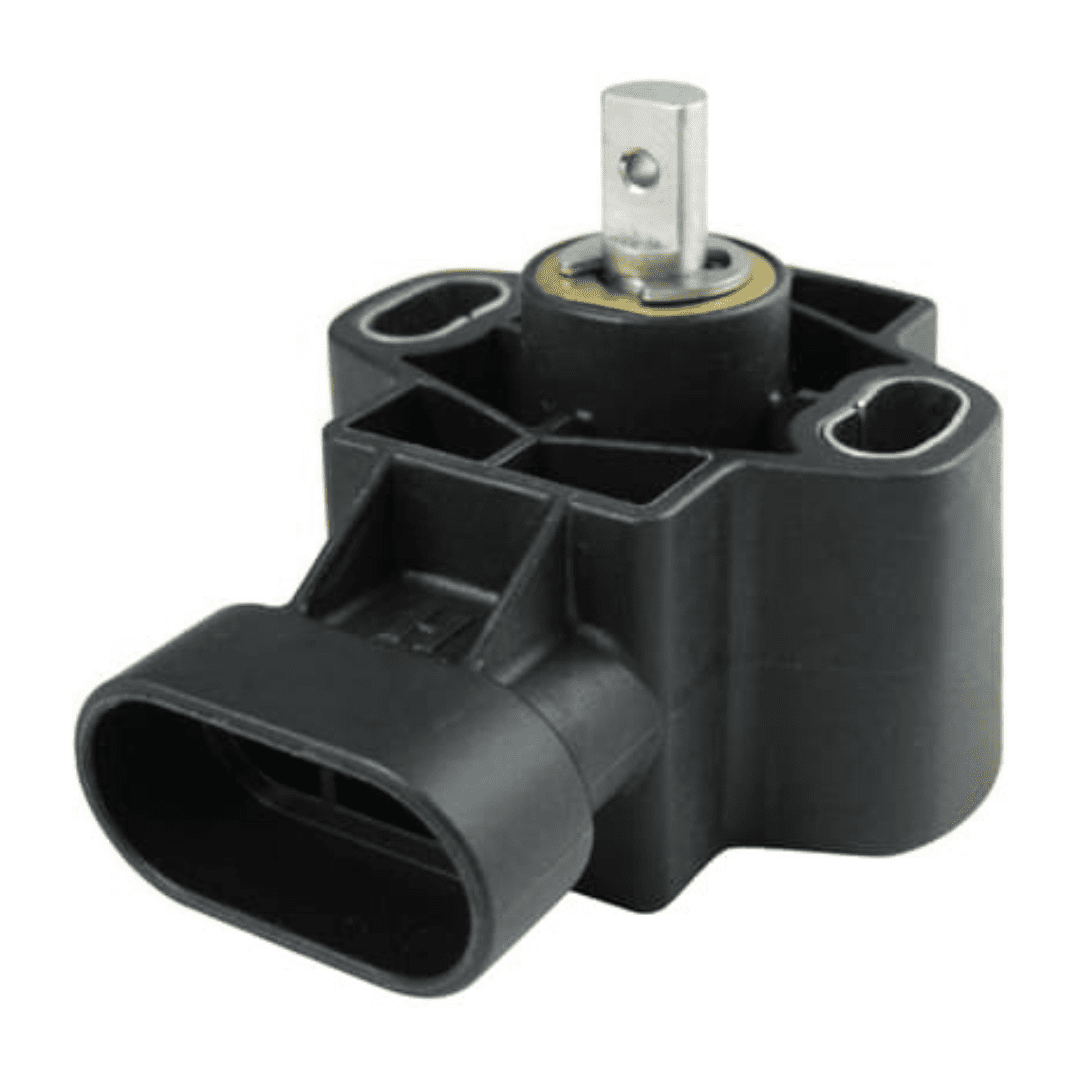

RTY180HVNAX Honeywell Hall Effect Rotary Position Sensor

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	RTY180HVNAX
Supply voltage	5 ±0.5 Vdc
Supply current: normal during output to ground short	20 mA max. 25 mA max
Output: standard inverted	0.5 Vdc to 4.5 Vdc ratiometric 4.5 Vdc to 0.5 Vdc ratiometric
Output signal delay	4 ms typ
Overvoltage protection	10 Vdc
Reverse polarity protection	-10 Vdc
Resolution	12 bit
Output load resistance (pull down to ground)	10 kOhm typ.

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

RTY180HVNAX Honeywell Hall Effect Rotary Position Sensor

The RTY Series and RTP Series Hall-effect Rotary Position Sensors provide non-contact sensing in harsh transportation and
industrial applications at a competitive cost. These products use a magnetically biased, Hall-effect integrated circuit (IC) to sense rotary movement of the actuator over a set operating range. Rotation of the actuator changes the magnet’s position relative to the IC. The resulting flux density change is converted to a linear output. The IC, together with conditioning and protection circuitry, is sealed in an IP69K-qualified rugged package for durability in most harsh environments. Eight operating ranges from 50° to 360° are tolerant to over-travel and allow use in most common applications. Low voltage and high voltage versions cover an input voltage range of 4.5 Vdc to 30 Vdc. Honeywell’s industry-leading capabilities in research and development provide the customer with known quality and support.
