QM50E10C01 Honeywell Micro Switch

150.00 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model No. QM50E10C01
Switch Type Subminiature
Circuitry SPDT
Operating Force 150 gf max
Terminal Type Solder
Actuator Type Std. straight lever (18,7 mm)

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Honeywell V7-1C17E9-201 Micro Switch

Description

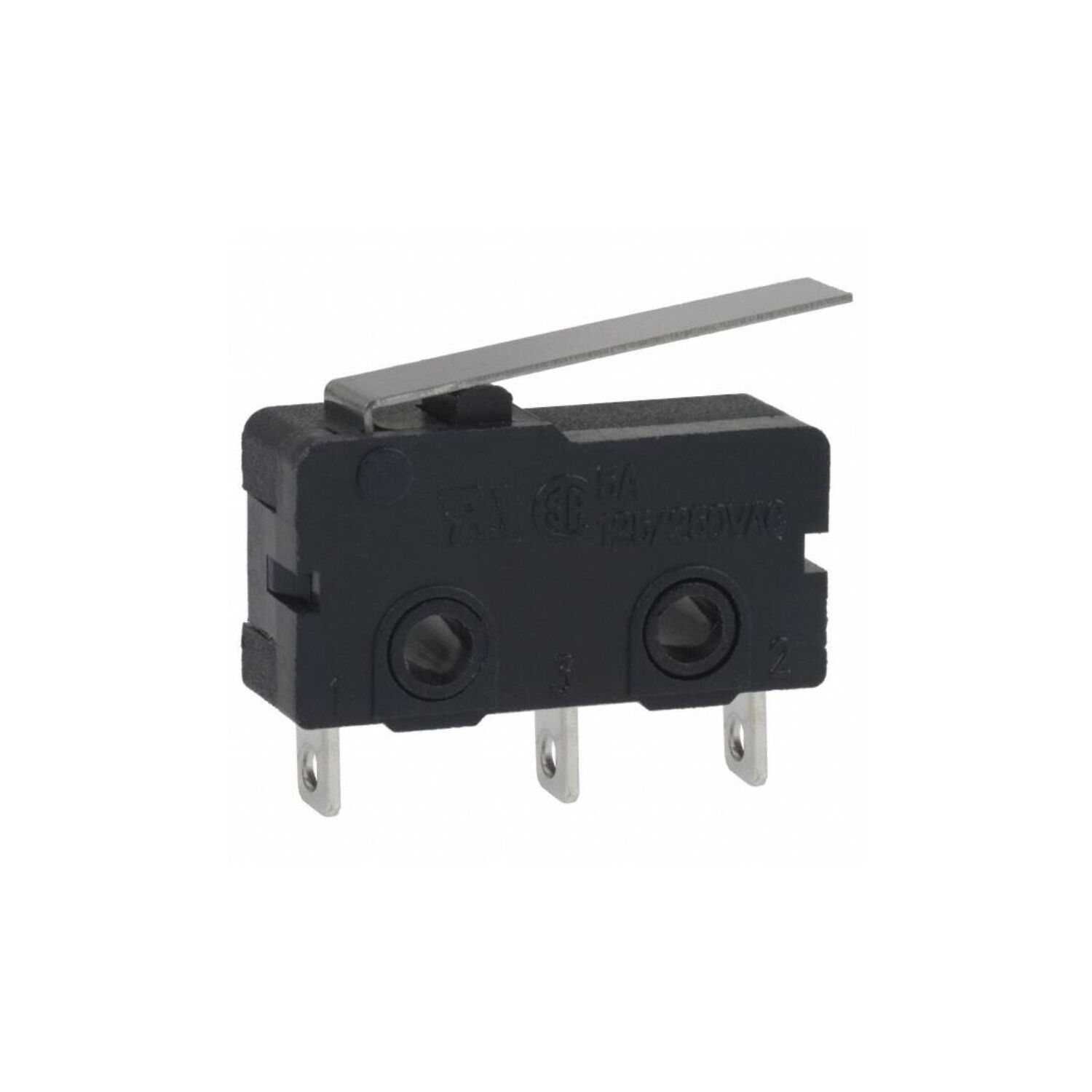

QM50E10C01 Honeywell Micro Switch

The industry-defining name in snap-action switches, Honeywell MICRO SWITCH™ subminiature switches, QM Series, are designed for repeatability and enhanced product life. The QM Series combines small size and light weight with ample electrical capacity, low cost, and enhanced life. The reliable and rugged QM Series offers many unique features that can drop right into an application. A variety of actuators, terminations, circuitry configurations, electrical ratings, contact materials, operating characteristics, and sealing allow for use in many applications. Carefully manufactured and thoroughly inspected, the QM Series are a great value for applications that require sensing the presence or absence of an object.

What makes Honeywell Micro Switch QM50E10C01 Better?

Cost-effective: The right switch at the right cost

MICRO SWITCH legacy: Over 80 years of engineering excellence and experience

Designed to Six Sigma standards: Provides the highest level of quality and consistency

Dependable performance: Tested up to 1 million cycles

International approvals: UL, cUL, ENEC, CQC

Configurable: Wide selection of operating forces, terminations and actuators

Small size: Meets industry standards



INDUSTRIAL APPLICATIONS

Appliances
– Coffee machine
– Fountain soda dispensers
– Microwaves
– Laundry – Washing machines and dryers

• Office equipment
– Computer mice
– Keyboards
– Printers, copiers
– Fax Machines

• Electric tools
– Electric power tools: drills, saws, grinders
– Flashlights
