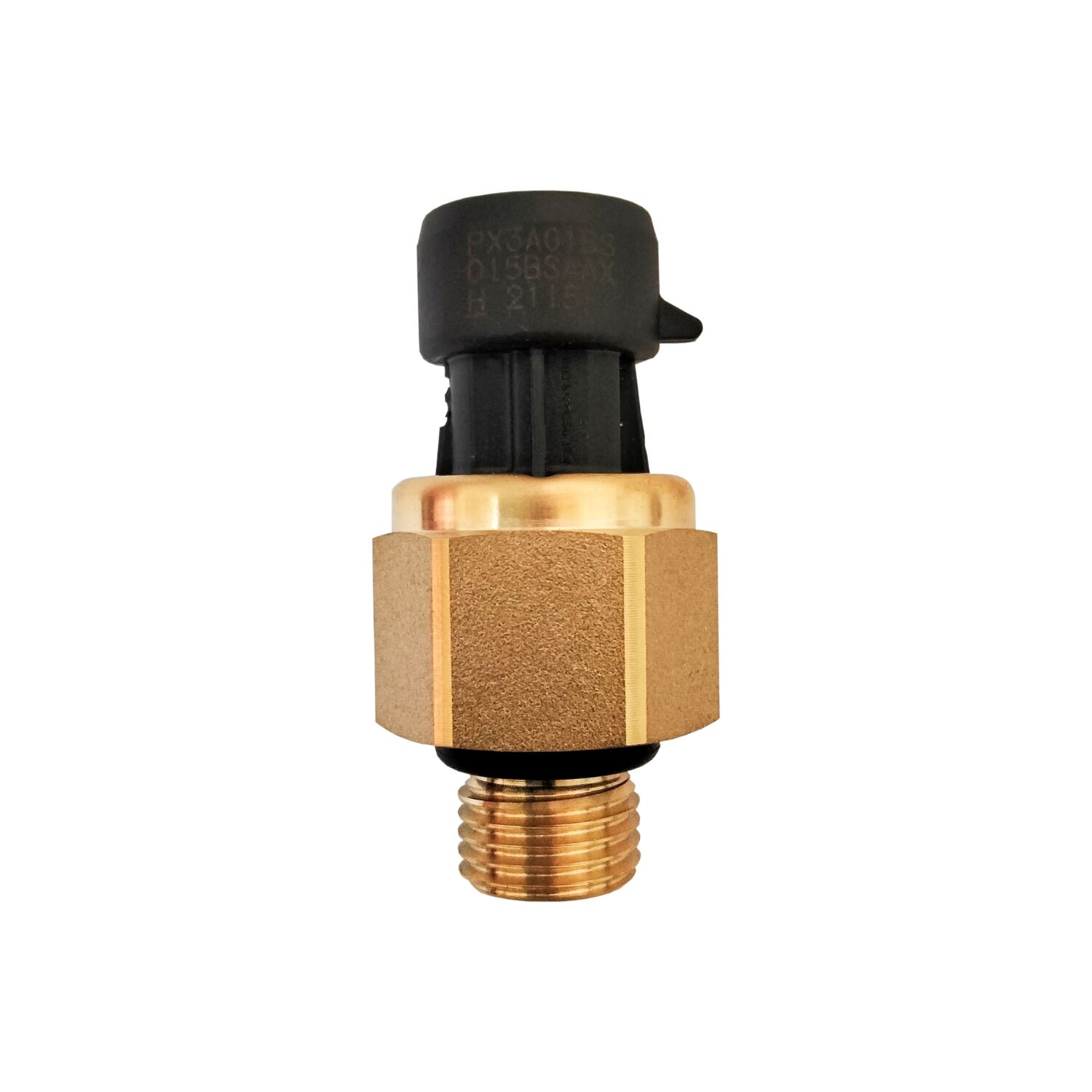

PX3AG2BH040BSCHL Honeywell Pressure Transducers

Available on order

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model No.	PX3AG2BH040BSCHL
Type	Heavy Duty Pressure Transducer
Electrical Connector Type	Metri-Pack 150, Standard (UL V-0)2
Pressure Port Type	G1/4 A-L (ISO 1179-2)
Internal O-ring Material	Silicone
Internal O-ring Material and Temperature Range	HNBR (Hydrogenated Nitrile Butadiene Rubber): -30°C to 125°C [-22°F to 257°F]
Pressure Range	40 bar
Pressure Reference	Sealed gage
Current	4 mA to 20 mA
Operating temperature Range	-40°C to 125°C
Storage temperature range	-40°C to 125°C
Accuracy	±0.25 %FSS
Response time	<2 ms
Housing Body Material	Brass

Description

PX3AG2BH040BSCHL Honeywell Pressure Transducers use piezoresistive sensing technology with ASIC(Application Specific Integrated Circuit) signal conditioning in a brass or stainless steel housing and Metri-Pack 150, DIN, or cable harness electrical connections. The Honeywell PX3AG2BH040BSCHL Pressure Transducers, PX3 Series is calibrated and temperature compensated from -40°C to 125°C [-40°Fto 257°F].

POTENTIAL APPLICATIONS
• Industrial: Refrigerant pressure monitoring in HVAC/R systems; dry air system pressure, process controls and automation
• Transportation: Dry air system monitoring; hydraulic, brake, and engine oil fluid pressure monitoring; air brake pressure monitoring
The PX3 Series is not recommended for use with media involving water, saturated air such as steam and vapor, and ammonia.
