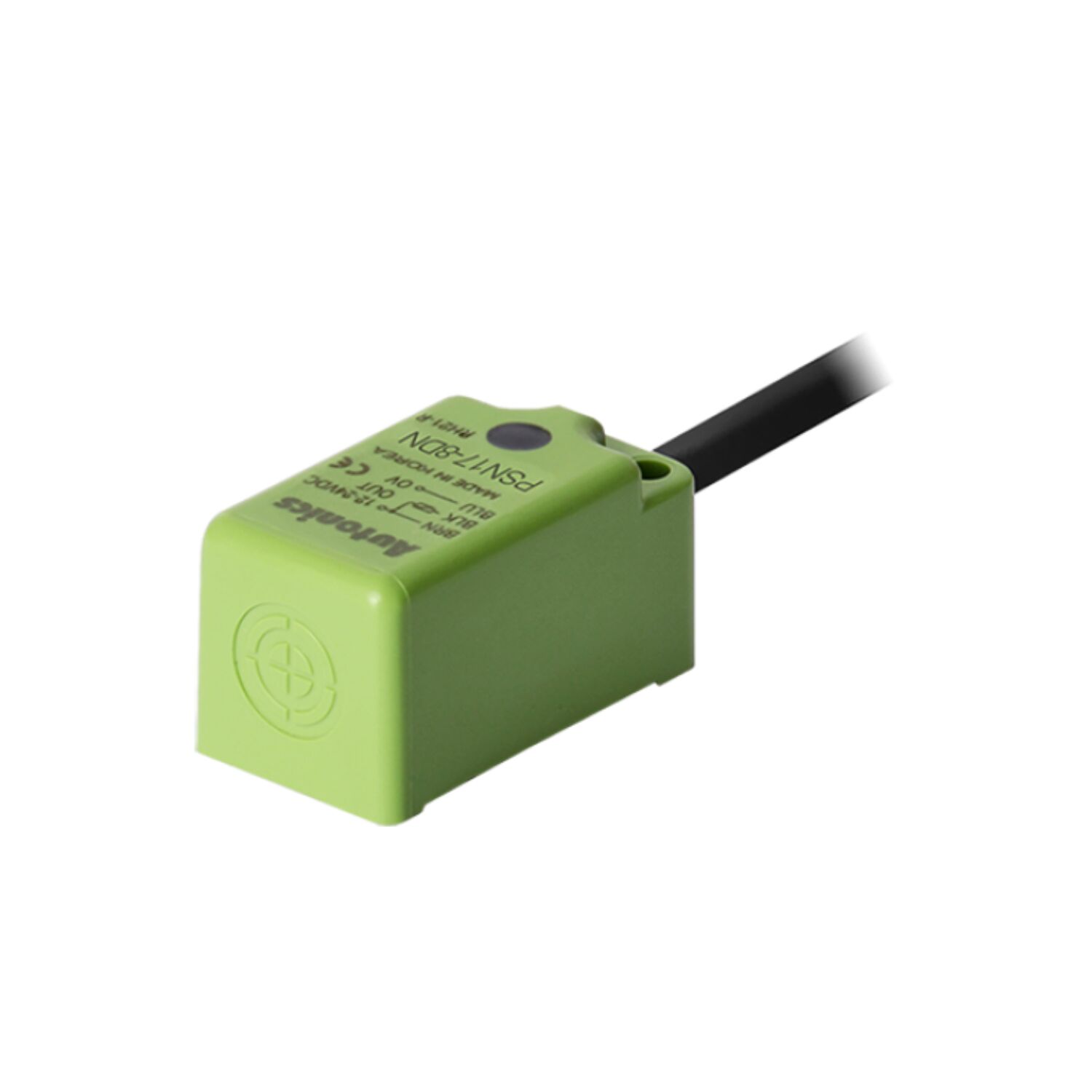

Autonics PSN17-8DN Proximity Sensor

PSN17-8DN Autonics Proximity Sensor

Available on order

₹1,293.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model PSN17-8DN
Wire type and power DC 3-wire type 12-24VDC
Sensing side size Frame size 17mm
Sensing distance 8mm
Standard sensing target 25×25×1mm(iron)
Response frequency 200Hz
Current specification Current consumption: Max. 10mA
Control output NPN Normally Open
Sensing type Standard type(front sensing type)
Material Heat-resistant ABS
Protection structure IP67
Approval CE
Environment Ambient temperature -25 to 70 Deg C.
Environment Ambient humidity 35 to 95% RH, storage: 35 to 95% RH
Weight Approx. 70g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Category: Tags:

Description

PSN17-8DN Autonics Proximity Sensor

  1. Shorten the time of maintenance with the body
  2. Improved the noise resistance by adopting dedicated IC (DC 3—wire type)
  3. Reverse power polarity (DC), surge (DC/AC), overcurrent protection
  4. Long life cycle and high reliability
  5. Red LED status indication
  6. IP67 rated waterproof structure (IEC standard)
  7. Replacer for micro switches and limit switches
