₹3,051.00 Excluding GST
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Type | DC 3 – wire type |
| Model | PS08-2.5DPU |
| Sensing distance | 2.5 mm |
| Sensing side length | 8 mm |
| Control output | P: PNP Normally Open |
| Sensing side | U: Upper side type |
| Power Supply(operation voltage) | 12 – 24 VDC (ripple P-P: ≤ 10 %), operating voltage: 10 – 30 VDC |
| Hysteresis | ≤ 10 % of sensing distance (sensing side length 8 mm: ≤ 20 %) |
| Standard Sensing Target(iron) | 8 × 8 × 1 mm |
| Setting Distance | 0 to 1.75 mm |
| Power Supply(operation voltage) | 12 – 24 VDC (ripple P-P: ≤ 10 %), operating voltage: 10 – 30 VDC |
| Current consumption | ≤ 10 mA |
| Response Frequency *1 | 1 kHz |
| Residual Voltage | Sensing side length 8 mm: ≤ 1.0 V Sensing side length 12 mm, 50 mm: ≤ 1.5 V |
| Affection by Temp. | ≤ ± 10 % for sensing distance at ambient temperature
20 ℃(sensing side length 8 mm: ≤ ± 15 %) |
| Control output | Sensing side length 8 mm: ≤ 100 mA Sensing side length 12 mm, 50 mm: ≤ 200 mA |
| Insulation resistance | ≥ 50 MΩ (500 VDCᜡ megger) |
| Dielectric strength | Between all terminals and case: 1,500 VACᜠ 50 / 60Hz for 1 minute (sensing side length 8 mm -between all terminals and case: 1,000 VACᜠ 50 / 60Hz for 1 minute |
| Vibration | 1 mm double amplitude at frequency 10 to 55 Hz in each of X, Y, Z directions for 2 hours |
| Shock | 500 m/s² (≈ 50 G) X, Y, Z directions for 3 times |
| Indicator | Operation Indicator (Red Led) |
| Wire spec. | Ø 2.5 mm cable : AWG 28 (0.08 mm, 19-core), insulator diameter: Ø 0.9 mm Ø 4 mm, Ø 5 mm cable : AWG 22 (0.08 mm, 60-core), insulator diameter: Ø 1.25 mm |
| Ambient Temperature | -25 to 70 %RH, storage: -30 to 80 %RH (no freezing or condensation) |
| Material | Sensing side length 8 mm Case: PC, |
| Ambient humidity | 35 to 95 %RH, storage: 35 to 95 %RH (no freezing or condensation) |
| protection Circuit | Surge, reverse power polarity, Overcurrent protection circuit |
| protection | IP67 (IEC Standard) |
| cable spec. | Sensing side length 8 mm: Ø 2.5 mm, 3-wire, 1 m |
| Unit weight | ≈ 16 g (≈ 30 g) |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

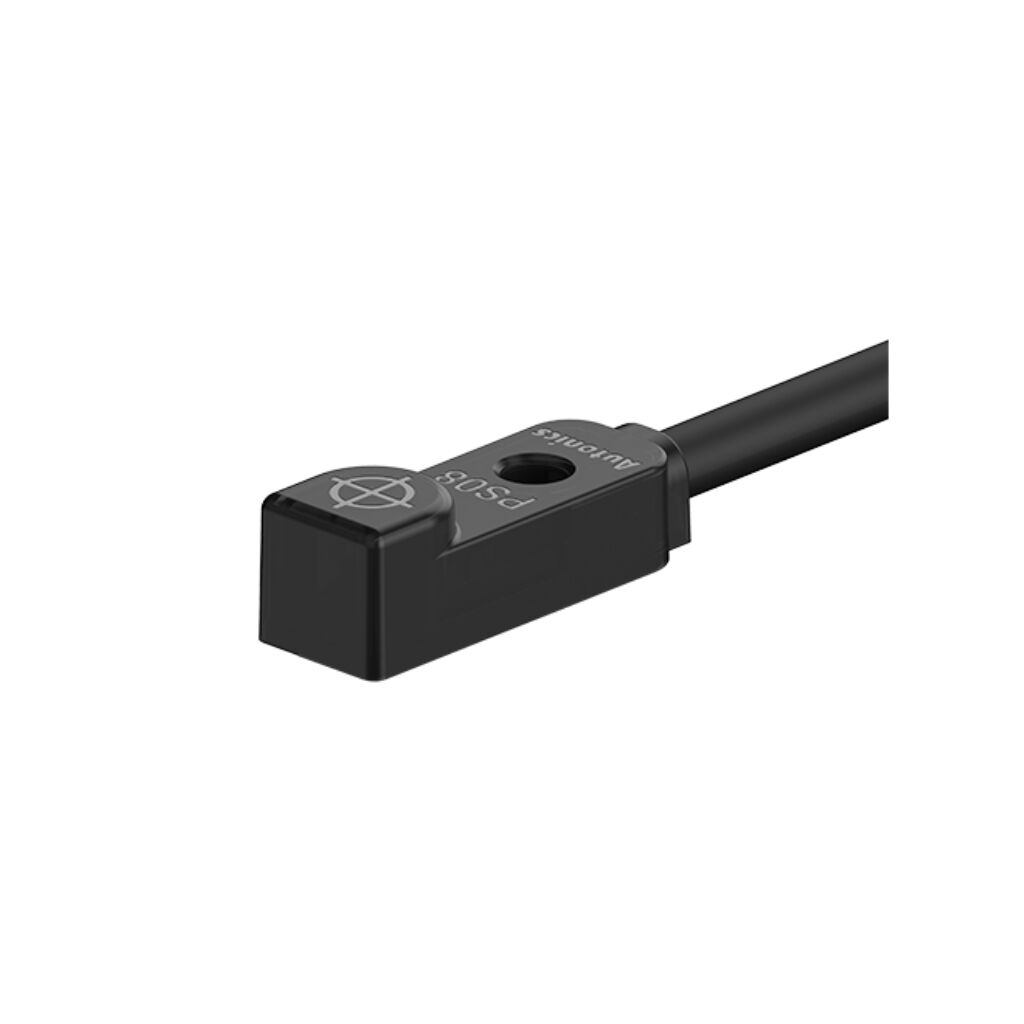

PS08-2.5DPU Autonics Proximity Sensor
Rectangular Inductive Proximity Sensors
Features:
• Alternate frequency models allow adjacent installation of multiple sensors without
interference (PSN17-□-F model)
• Operation indicator (red LED)
• IP67 protection structure (IEC standard)
