₹1,270.00 Excluding GST
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model | PRT12-2DO |
| Wire type and power | DC 2-wire type 12-24VDC |
| Sensing side diameter | M12 |
| Sensing distance | 2mm |
| Installation | Shield(flush) |
| Standard sensing target | 12×12×1mm(iron) |
| Response frequency | 1.5kHz |
| Current specification | Leakage current: Max. 0.6mA |
| Control output | Normally Open |
| Material | Brass(nickel plated) |
| Cable Standard ( material ) | Standard cable |
| Protection structure | IP67 |
| Approval | CE |
| Body length | Standard type |
| Environment Ambient temperature | -25 to 70 Deg C. |
| Environment Ambient humidity | 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual voltage | Max. 3.5V |
| Weight | Approx. 84g |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

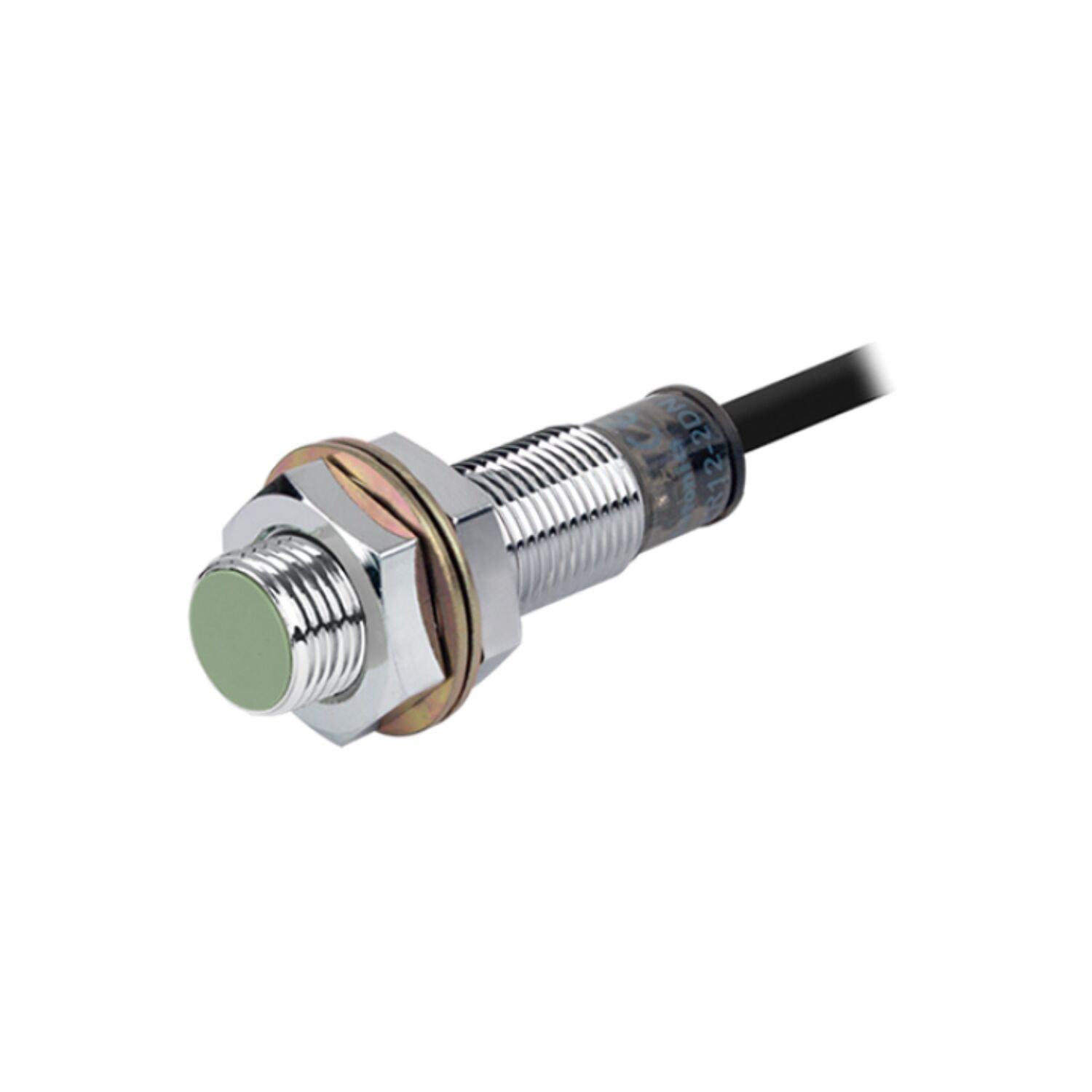

PRT12-2DO Autonics Proximity Sensor
Features:
