₹10,508.00 Excluding GST
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model | PRFDAWT12-3DO-IV |
| Wire type and power | DC 2-wire type 12-24VDC (10-30VDC) |
| Sensing side diameter | 12mm |
| Sensing distance | 3mm |
| Installation | Shield(flush) |
| Standard sensing target | 12×12×1mm(iron) |
| Response frequency | 80Hz |
| Current specification | Leakage current: Max. 0.8mA |
| Control output | DC 2-wire Normally open |
| Material | Case/Nut: stainless steel 303 (SUS 303, PTFE coated), washer: stainless steel 304 (SUS 304), sensing side: stainless steel 303 (SUS 303, PTFE coated, thickness of PRFDAWT12/18: 0.4mm, RFDAWT30: 0.5mm), oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Cable Standard ( material ) | Oil resistant cable(IEC standard) |
| Protection structure | IP67(IEC standard) |
| Approval | CE |
| Body length | Standard type |
| Environment Ambient temperature | -25 to 70℃, storage: -25 to 70℃ |
| Environment Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 15% of sensing distance |
| Residual voltage | Max. 3.5V |
| Weight | Approx. 110g(approx. 83g) |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

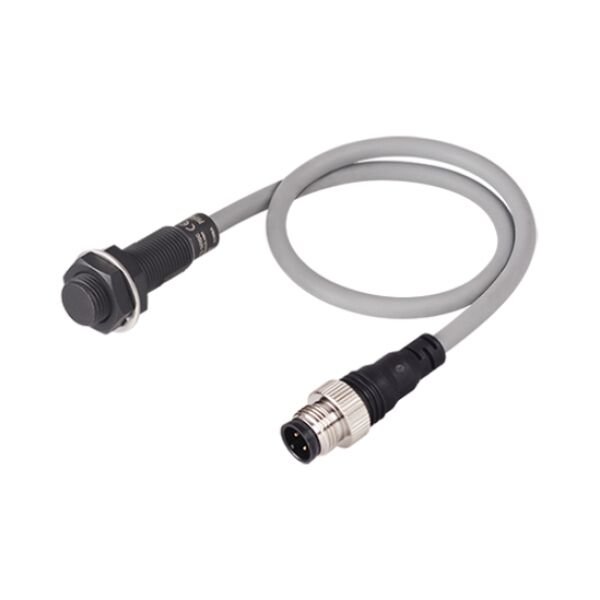

PRFDAWT12-3DO-IV Autonics Inductive Proximity Sensor
Features:
