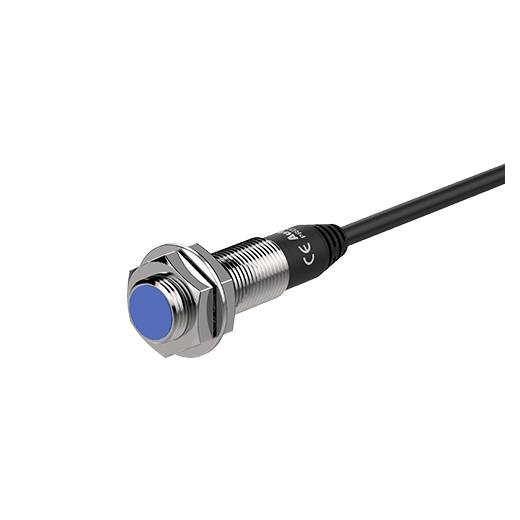

Autonics PRDT12-4XO Proximity Sensor

PRDT12-4XO Autonics Proximity Sensor

₹1,790.00 Excluding GST

Available in Stock

Kindly add the quantity in below box and click "Add to Cart" button to proceed

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model No. PRDT12-4XO
Wire type and power DC 2-wire type 12-24VDC
Sensing side diameter M12
Sensing distance 4mm
Installation Shield(flush)
Standard sensing target 12×12×1mm(iron)
Response frequency 450Hz
Current specification Leakage current: Max. 0.6mA
Control output Normally Open
Material Brass(nickel plated)
Cable Standard/material Standard cable
Protection structure IP67
Body length Standard type
Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃
Ambient humidity 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance) Max. 10% of sensing distance
Residual voltage Max. 5V
Weight  62g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Categories: , Tags:

Description

PRDT12-4XO Autonics Proximity Sensor

Features

  1. Autonics PRDT12-4XO Proximity Sensor Sensing side diameter : M12
  2. Sensing distance : 4mm
  3. Installation : Shield(flush)
  4. Standard sensing target : 12×12×1mm(iron)
  5. Response frequency : 450Hz
