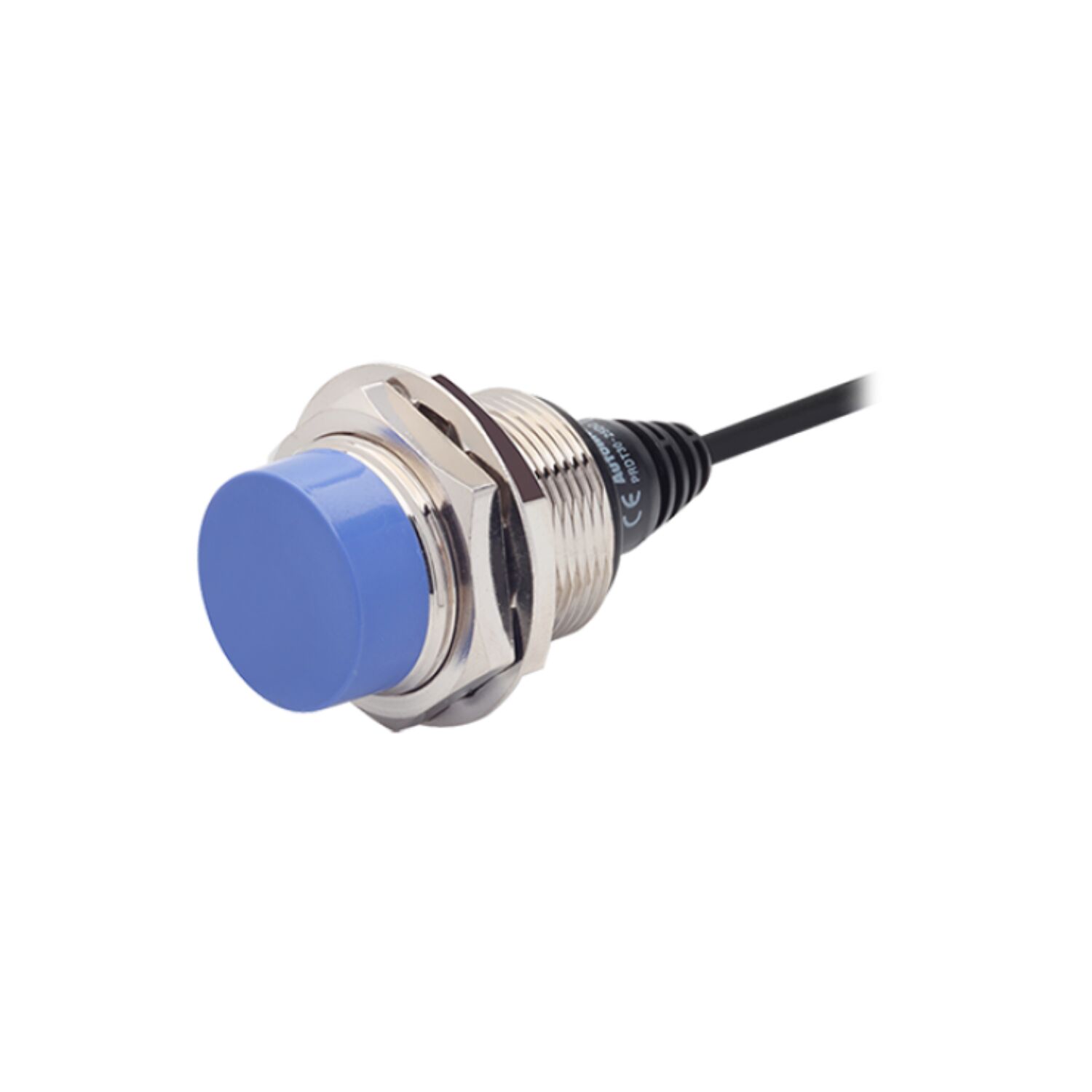

Name: PRD30-25DN Autonics Proximity Sensor
SKU: 62398
Price: 1918.00 INR
Availability: OutOfStock

PRD30-25DN Autonics Proximity Sensor

Available on order

₹1,918.00 Excluding GST

Product Details:

Product	Description
Brand	Autonics
Model	PRD30-25DN
Wire Type and Power	DC 3-wire type 12-24VDC
Setting Diameter	0-17.5mm
Sensing Distance	25mm
Installation	Non-Shield
Standard Sensing Target	75×75×1mm(iron)
Response Frequency	100Hz
Current Specification	Leakage current: Max. 10mA
Control Output	200mA
Material	Case/Nut: Nickel plated Brass, Washer: Nickel plated Iron, Sensing surface: Heat-resistant Acrylonitrile butadiene styrene, Standard cable (black): Polyvinyl chloride (PVC), Oil resistant cable (gray): Oil resistant Polyvinyl chloride (PVC)
Cable	Ø5mm, 3-wire, 2m
Protection Structure	IP67 (IEC standard)
Body Length	Standard type
Environment Ambient Temperature	-25 to 70℃
Environment Ambient Humidity	35 to 95% RH
Hysteresis(distance)	Max. 10% of sensing distance
Residual Voltage	Max. 1.5V
Power Supply	24 VDC
Vibration	1mm amplitude
Dielectric Strength	1500 VAC 50/60 Hz for 1 min
Shock	500 m/s² in each X, Y, Z direction for 3 times
Weight	Approx. 180g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

PRD30-25DN Autonics Proximity Sensor

Features

Long sensing distance (1.5 to 2 times longer sensing distance guaranteed compared to existing models)
Improved the noise immunity with dedicated IC
Built-in surge protection, reverse polarity protection, over-current protection circuit
Long life cycle and high reliability, and simple operation
Red LED operation indicator
IP67 protection structure (IEC standard)
Replaceable for micro switches and limit switches
Strain relief cables: improved flexural strength of cable connecting component
