Name: PRD18-7DN Autonics Inductive Proximity Sensor
SKU: 64550
Price: 1347.00 INR
Availability: OutOfStock

PRD18-7DN Autonics Inductive Proximity Sensor

Available on order

₹1,347.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Autonics
Model No.	PRD18-7DN
Wire type and power	DC 3-wire type 12-24VDC
Sensing side diameter	M18
Sensing distance	7mm
Installation	Shield(flush)
Standard sensing target	20×20×1mm(iron)
Response frequency	300Hz
Current specification	Current consumption: Max. 10mA
Control output	NPN Normally Open
Material	Brass(nickel plated)
Cable Standard/material	Standard cable
Protection structure	IP67
Approval	CE
Body length	Standard type
Environment Ambient temperature	-25 to 70℃, storage: -30 to 80℃
Environment Ambient humidity	35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)	Max. 10% of sensing distance
Residual voltage	Max. 1.5V
Weight	97g

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

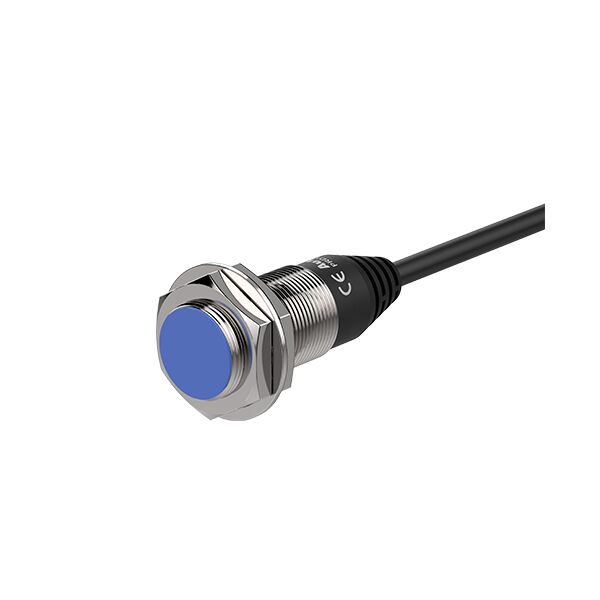

PRD18-7DN Autonics Inductive Proximity Sensor

The PRD series cylindrical inductive proximity sensors are available in standard and IO-Link communication models. Autonics Inductive Proximity Sensor PRD18-7DN is one of the module of PRD Series. The sensors feature long sensing distances and excellent noise immunity. Available in various sizes and sensing distances, the high performance cylindrical inductive sensors can be used in diverse applications requiring non-contact detection of metallic objects. The sensors also feature strain relief cables for improved flexural strength and durability.

Features:
