₹2,802.00 Excluding GST
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model | PRCM30-15AO |
| Wire type and power | AC 2-wire type 100-240VAC |
| Sensing side diameter | M30 |
| Sensing distance | 15mm |
| Installation | Non-flush |
| Standard sensing target | 45×45×1mm(iron) |
| Response frequency | 20Hz |
| Current specification | Leakage current: Max. 2.5mA |
| Control output | Normally Open |
| Material | Brass(nickel plated) |
| Cable Standard ( material ) | Standard connector |
| Protection structure | IP67(IEC standard) |
| Approval | CE |
| Body length | Standard type |
| Environment Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual voltage | Max. 10V |
| Weight | Approx. 154g(approx. 142g) |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

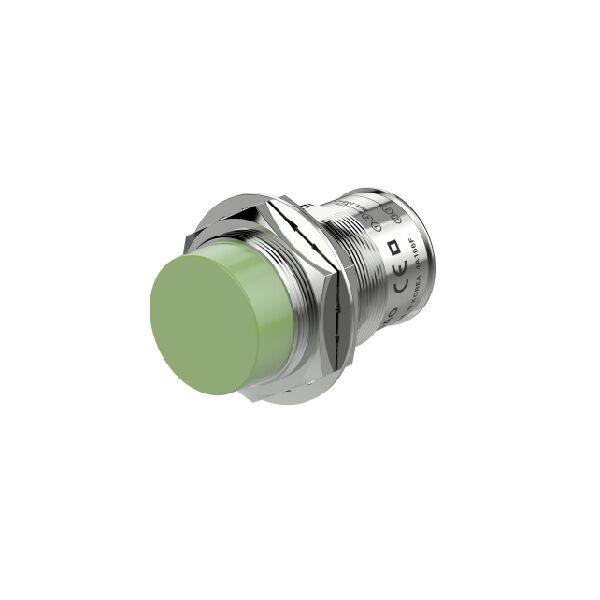

PRCM30-15AO Autonics Inductive Proximity Sensor
Features:
