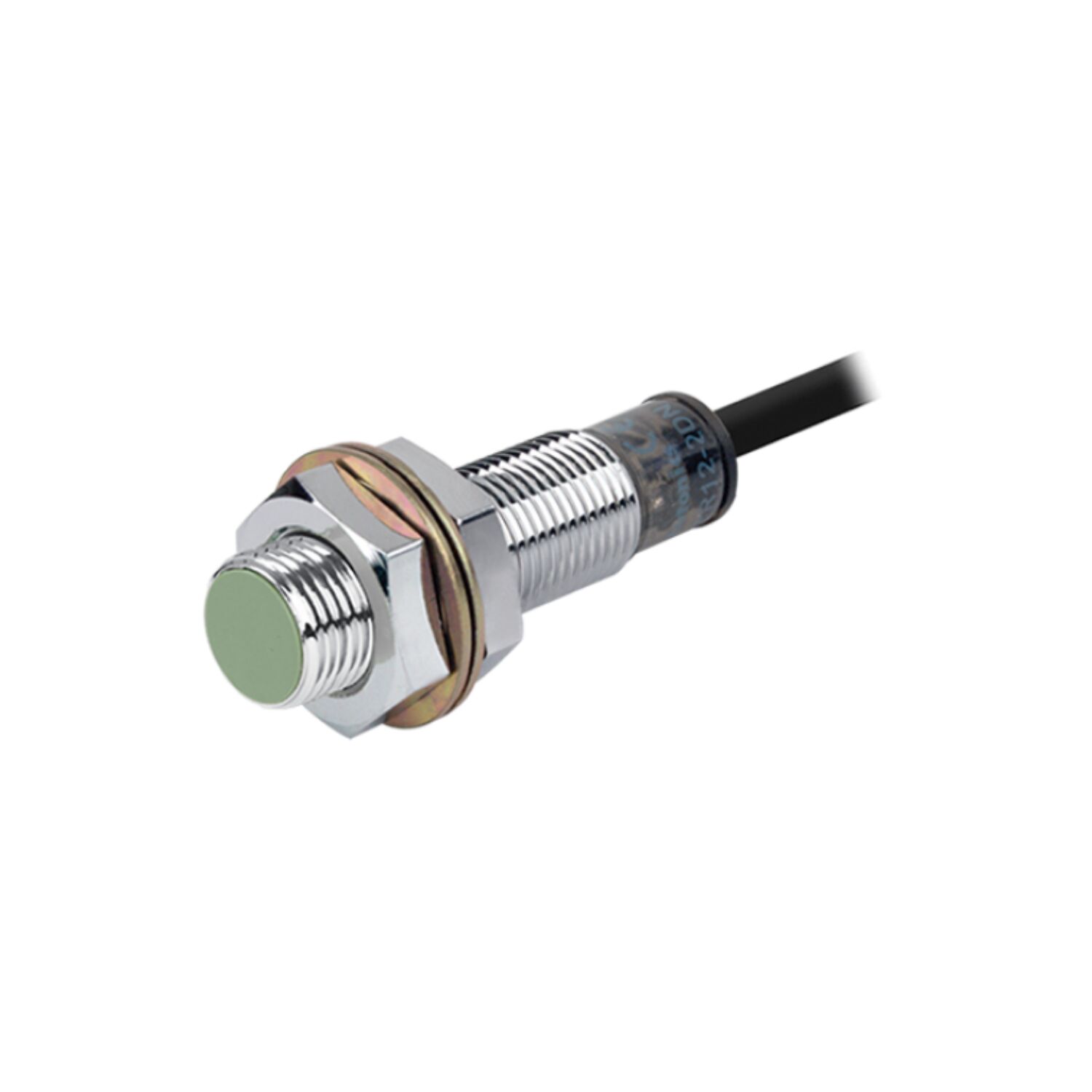

PR12-2DN Autonics Proximity Sensor

Available on order

1,179.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Autonics
Model No. PR12-2DN
Wire type and power DC 3-wire type 12-24VDC
Sensing side diameter M12
Sensing distance 2mm
Installation Shield(flush)
Standard sensing target 12×12×1mm(iron)
Response frequency 1.5kHz
Current specification Current consumption: Max. 10mA
Control output NPN Normally Open
Material Brass(nickel plated)
Cable Standard/material Standard cable
Protection structure IP67
Body length Standard type
Environment Ambient temperature -25 to 70 Deg C
Environment Ambient humidity 35 to 95% RH
Hysteresis(distance) Max. 10% of sensing distance
Residual voltage Max. 1.5V
Weight Approx. 84g
Approval CE

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Autonics PR12-4DN Proximity Sensor

Description

PR12-2DN Autonics Proximity Sensor ,

Features:

  1. Improved the noise immunity with dedicated IC
  2. Built-in reverse polarity protection circuit (DC 3-wire type)\
  3. Built-in surge protection circuit
  4. Built-in over-current protection circuit (DC type)
  5. Long life cycle and high reliability, and simple operation
  6. IP67 protection structure (IEC standard)
  7. Replaceable for micro switches and limit switches
