₹1,993.00 Excluding GST
Available in Stock
Product Details:
| Product | Description |
|---|---|
| Brand | Autonics |
| Model | PR08-2DN |
| Wire type and power | DC 3-wire type 12-24VDC |
| Sensing side diameter | M08 |
| Sensing distance | 2mm |
| Installation | Non-shield(non-flush) |
| Standard sensing target | 8×8×1mm(iron) |
| Response frequency | 1kHz |
| Current specification | Current consumption: Max. 10mA |
| Control output | NPN Normally Open |
| Material | Brass(nickel plated) |
| Cable Standard ( material ) | Standard cable |
| Protection structure | IP67 |
| Approval | CE |
| Body length | Standard type |
| Environment Ambient temperature | -25 to 70℃, storage: -30 to 80? |
| Environment Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual voltage | Max. 2V |
| Weight | Approx. 64g(approx. 52g) |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

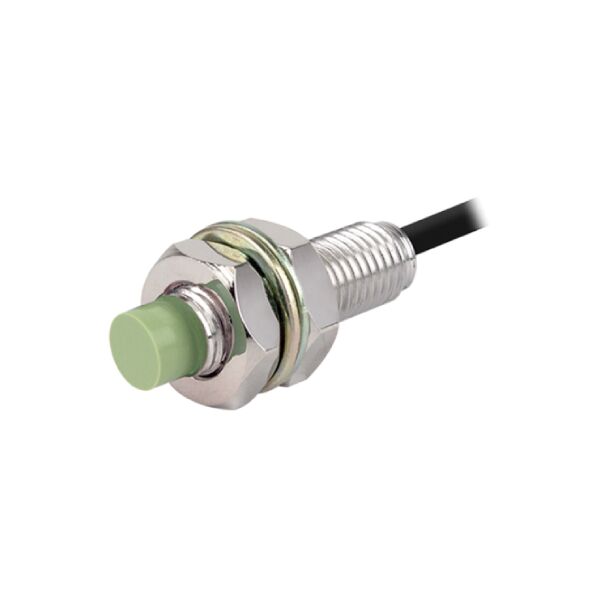

PR08-2DN Autonics Inductive Proximity Sensor
Features:
