₹7,400.00 Excluding GST
Product Details :
| Product | Description |
|---|---|
| Brand | Honeywell Envitec |
| Model Name/Number | OOM204 |
| Measurement range | 0 % … 100 % oxygen (at atmospheric pressure) |
| Nominal sensor lifetime | ≥ 500 000 % volume oxygen hours |
| Output in ambient air | 9 mV … 13.5 mV (each of two channels) |
| Output difference | 1.25 mV (between the two channels) |
| Electrical interface | 3 pin (Molex® 22-11-1031) |
| Accuracy | meets ISO 80601-2-55 requirements |
| Repeatability | < 1 % volume O2 at constant temperature and pressure |
| Linearity error | < 3 % relative |
| Response time | < 12 s to 90 % of final value |
| Influence of humidity | -0.03 % rel. per % RH at 25 °C |
| Pressure range | 0.6 bar … 2 bar (ppO2 0 … 1250 mbar O2 |
| Operating temperature | 0 °C … +50 °C |
| Temperature compensation | built-in NTC compensation |
| Operating humidity | 0 % … 99 % RH non-condensing |
| Storage temperature | -20 °C … +50 °C |
| Warm-up time | < 30 minutes, after replacement of sensor |
| Weight | approximately 28 grams |
| Part number | 01-00-0097 |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

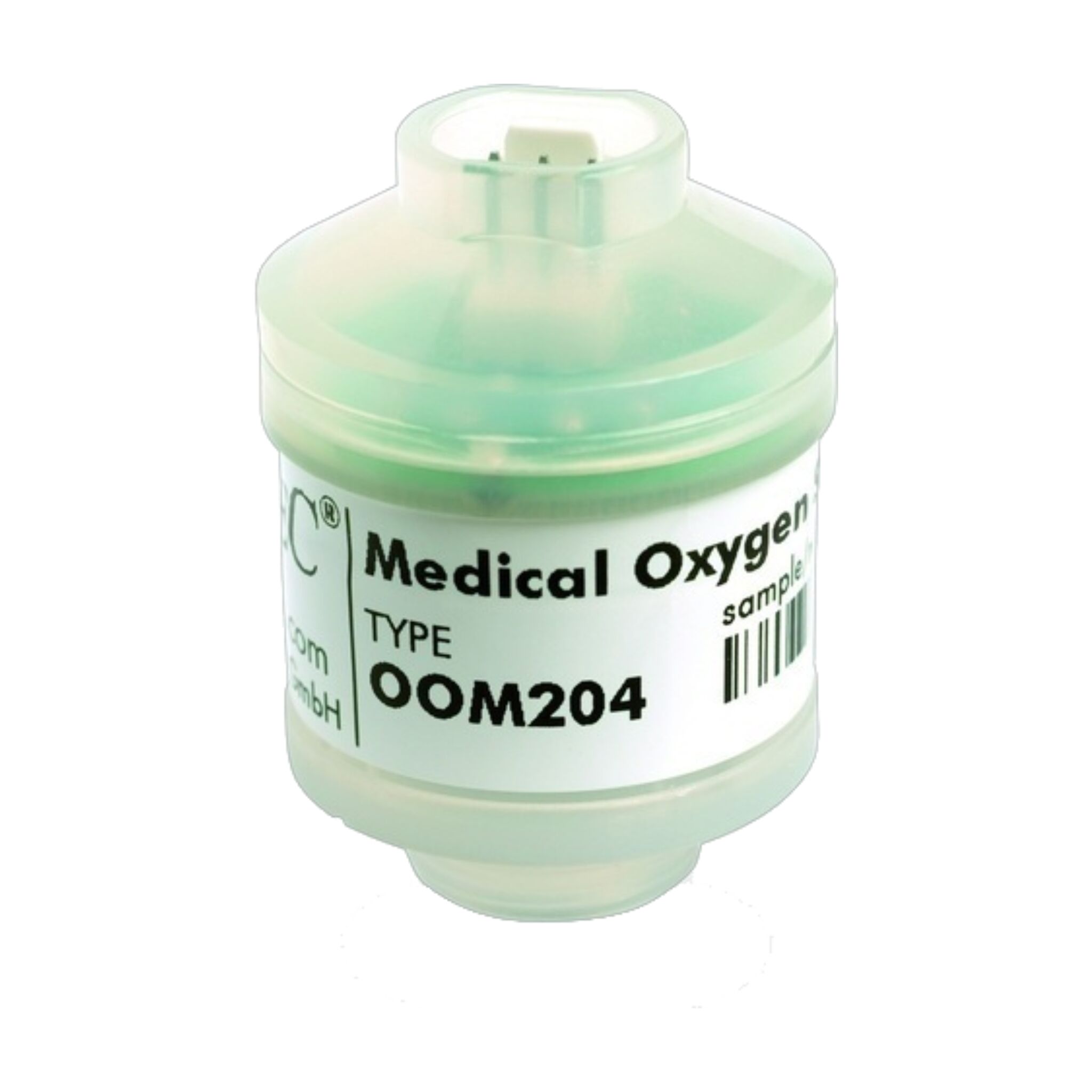

OOM204(E01-00-0097) Honeywell Envitec Oxygen Sensor
Use the advantages:
• Compliant with European MDD (CE certification)
• Meets ISO 80601-2-55
• Designed and manufactured according to EN ISO 13485
• Accurate and reliable fast response
• Resistant to N2O
• Excellent signal stability
• High product quality
• Short delivery times
• Technical support
• Made in Germany
• FDA cleared
![[AH002-J00] 3CLH City Technology Chlorine (Cl2) Gas Sensor](https://indusautomation.co/wp-content/uploads/2023/09/AH002-J00-3CLH-City-Technology-Chlorine-Cl2-Gas-Sensor.jpg)

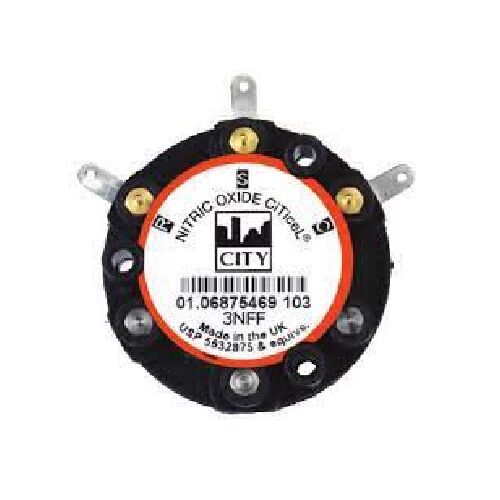

![[AF006-J06] 3NFF City Tech. Nitric Oxide (NO) Gas Sensor](https://indusautomation.co/wp-content/uploads/2023/09/AF006-J06-3NFF-City-Tech.-Nitric-Oxide-NO-Gas-Sensor.jpg)
