| Size | Model Number |
|---|---|
| Brand | Honeywell |
| Model | NOM16H0200 |
| Power Supply | AC220V±10% 50/60HZ |
| Limit switch | 2×SPDT，250V AC 5A |
| Auxiliary switch | 2×SPDT，250V AC 5A |
| Cable entries | 2×M20*1.5 |
| ON-OFF Type (NOM…) | Input signal:ON-OFF;Output signal:ON-OFF+Dry contact |
| Modulating Type (NOM…P) | Input signal:4~20mA(Default),0~10V/2~10V/0~20mA adjustable Output signal: Dry contact+ 4~20mA(Default),0~10V/2~10V/0~20mA adjustable |
| Torque range | 80Nm |
| Angle of rotation | 90° |
| Manual operation | Handwheel |
| Mounting base | ISO5211 standard |
| Position indicator | 3D indicator |
| Degree of protection | IP67,(IP68 as option) |
| CE | EMC：2014/30/EU LVD： 2014/35/EU |
| Ambient temperature | -30℃～ 65° C |
| Thermal protection | Built-in thermal protection starting 125° C±5° C |
| Status of power Lost | Stop |
| Status of signal Lost | 4~20mA/2~10V:Fully open/Fully closed adjustable(Default:Stop） 0~10V:Fully closed |
| Double anti-condensation protection |
Heater AC220V,5W Anti-condensation Vent plug |
| counter unit | Built-in counter unit to record the running times (200Nm-5000Nm) |
| Pressure | 16:PN16 25:PN25 |
| Running time(50Hz) |
30 |
| Motor Consumption(VA) |
92 |
| Heater(W) | 5 |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

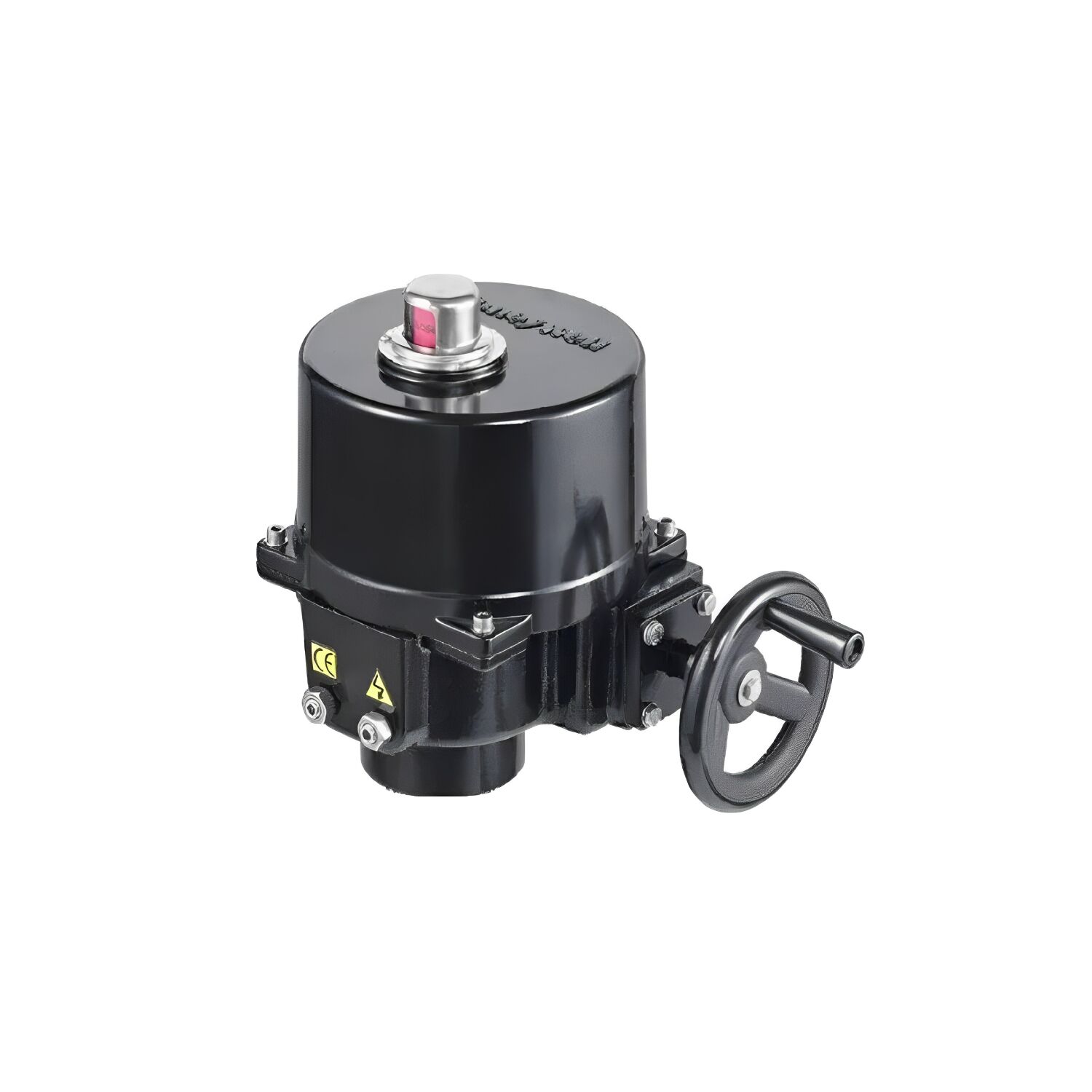

NOM16H0200 Honeywell Electric Actuator for Butterfly Valve suitable for V8 and V9 series, which are used in water systems such as buildings/public buildings/urban pipe networks control, it’s possible to offer ON-OFF control and modulating control as an option, and 4 to 20mA,0 to 10V/2-10V signals are available for the modulating control.
