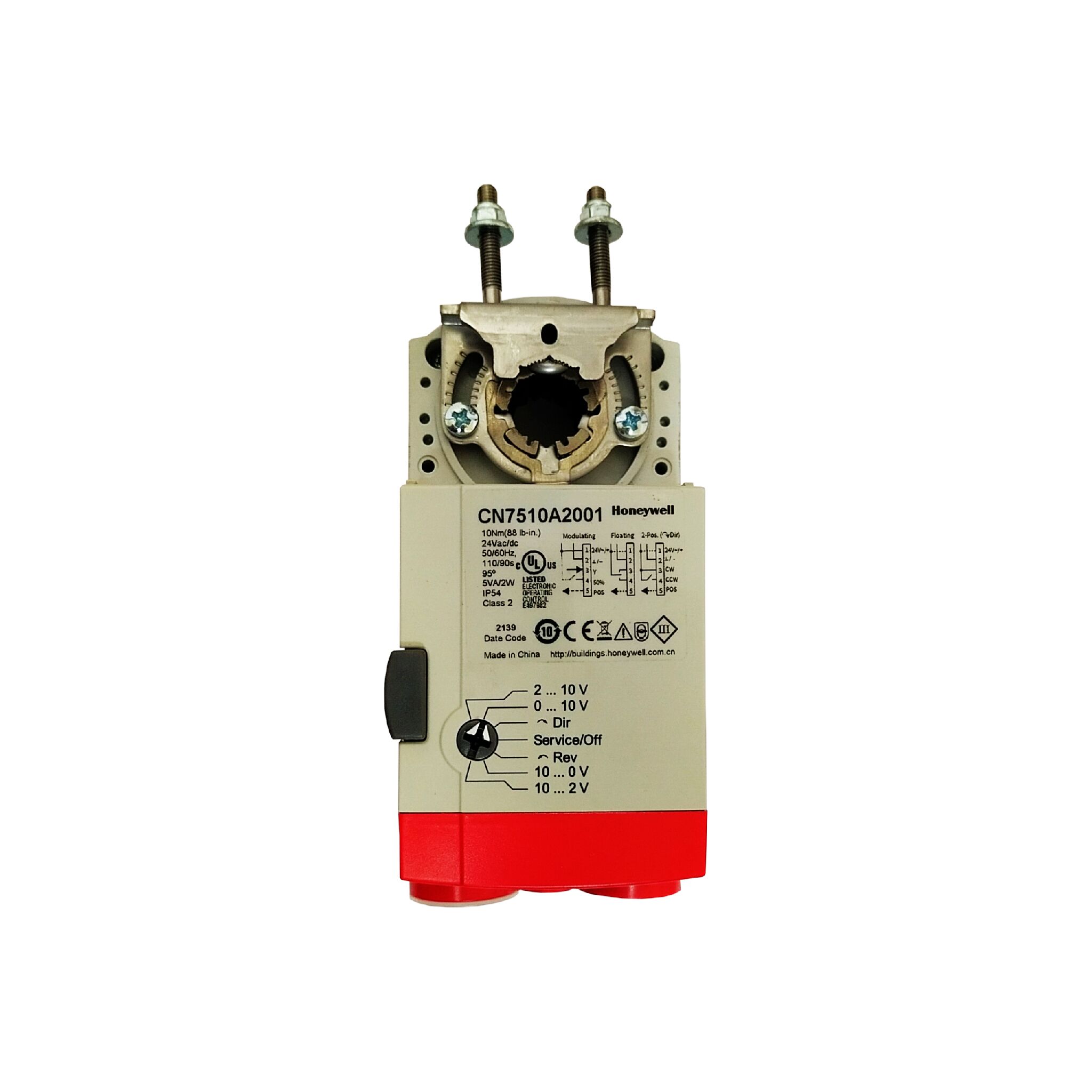

Name: CN7510A2001 Honeywell Damper Actuator
SKU: 58071
Price: 6113.00 INR
Availability: InStock

CN7510A2001 Honeywell Damper Actuator

₹6,113.00 Excluding GST

Available in Stock

For Bulk requirement, Kindly click on enquiry now button

Product Details:

Product	Description
Brand	Honeywell
Model	CN7510A2001
Power consumption	5 VA / 2 W
Supply voltage	24 Vac/dc -15%/+20%, 50/60 Hz
Nominal voltage	24 Vac/dc, 50/60 Hz
Control signal	Modulating (0)2…10 Vdc Floating/2-Position 24 Vac/dc
Ambient limits	Ambient operating limits :-20…+60 °C(-5…+140 °F ) Ambient storage limits : -30…+80 °C(-22…+176 °F ) Relative humidity: 5…95%
Protection standard	IP54
Lifetime	Full strokes 60000 Repositions 1.5 million
Mounting	Round damper shaft 3/8 in…5/8 in. Square damper shaft 1/4 in…1/2 in.; 45° steps Shaft length min. 1-5/8 in.
Torque rating	44 lb-in. (5Nm) / 88 lb-in. (10Nm)
Rotation stroke	95° + 3°
Weight (without cables)	1.0 lbs.
Certification	CE & UL

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Description

CN7510A2001 Honeywell Damper Actuator , NON-SPRING RETURN DIRECT-COUPLED DAMPER ACTUATORS FOR MODULATING AND FLOATING CONTROL

This non-spring return direct-coupled damper actuator provides modulating and floating/2 position control for:
• air dampers,
• VAV units,
• air handlers,
• ventilation flaps,
• louvers, and
• reliable control for air damper applications with up to 10 sq.ft. / 44 lb-in. (5 Nm) and 20 sq.ft. / 88 lb-in. (10 Nm) (seal- less damper blades; air friction dependent).

Features:

10Nm, 24Vac/Vdc, Modulating control, Non-Spring return Voltage Feedback Signal and without aux. Switch
