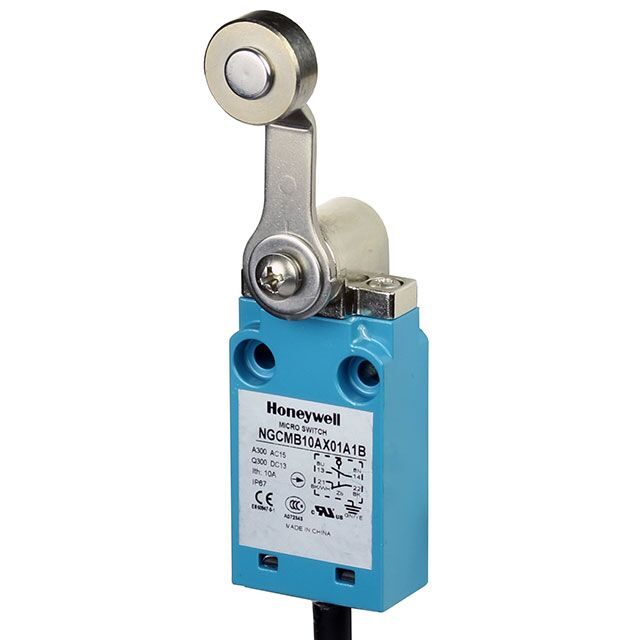

NGCMB10AX01A1B Honeywell Limit Switch

Product Details:

Product Description
Brand Honeywell
Model No. NGCMB10AX01A1B
Material approval standard (only applicable for product with non-halogen cable)
DIN5510-2-2009 (flammability rating: S3; smoke rating: > SRI; weld rating: ST2;
toxic gas rating: FED(TZUL=15min)< 1)
Switching options SPDT, DPDT; snap action contacts (1NC/1NO, 2NC/2NO)
Sealing NEMA 1, 4, 12, 13; IP67 per IEC 60529
suitable for outdoor applications
Contacts snap action, positive break
standard: silver alloy; gold: gold-plated
Operating temperature -25 °C to 70 °C [ -13 °F to 158 °F]
Storage temperature -40 °C to 85 °C [-40 °F to 185 °F]
Mechanical endurance 1NC/1NO: 5 M cycles min. at 120 CPM
2NC/2NO: 5 M cycles min. at 60 CPM
Electrical life 1 A 110 Vdc 500,000 cycles applicable only for NC circuit
Thermal current 1NC/1NO: 10 A; 2NC/2NO: 5 A
Rated insulation voltage (Ui) 1NC/1NO: 400 V as per IEC 60947-5-1
2NC/2NO: 250 V as per IEC 60947-5-1

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Categories: , Tags:

Description

NGCMB10AX01A1B Honeywell Limit Switch

Honeywell’s MICRO SWITCH™ Compact Limit Switches, NGC Series, are a configurable platform of medium-duty switches that allow the customer to choose SPDT (single pole, double throw) or DPDT (double pole, double throw) circuitry while maintaining the same housing and mounting footprint throughout the NGC Series. MICRO SWITCH™ NGC Series can be configured more than 380,000 ways, carries global approvals, and are sealed to IP67 for potential use in indoor and outdoor applications.
