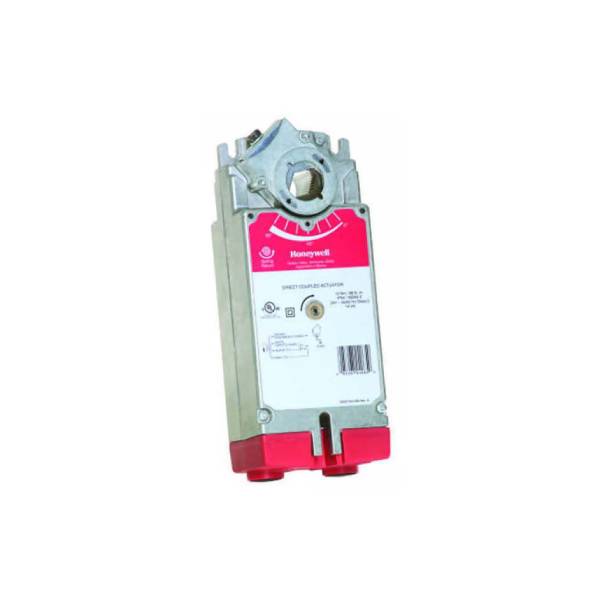

MS7510A2206/U Honeywell Damper Actuator

18,065.00 Excluding GST

For Bulk requirement, Kindly click on enquiry now button



Product Details:

Product Description
Brand Honeywell
Model MS7510A2206/U
Rotational Stroke 95 ±3 degrees
Fail Safe Mode Spring Return
Torque Rating 88 lb-in. (10 Nm)
Spring Return Direction By orientation

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

brochure

Description

MS7510A2206/U Honeywell Damper  Actuator

• Brushless DC submotor with electronic stall protection for floating/
modulating models.
• Brush DC submotor with electronic stall protection for 2-position
models.
• Self-centering shaft adapter (shaft coupling) for wide range of shaft
sizes.
• Models available for use with two-position, single pole single throw
(spst), line- (Series 40) or low- (Series 80) voltage controls.
• Models available for use with floating or switched single-pole,
double-throw (spdt) (Series 60) controls.
• Models available for use with proportional current or voltage (Series
70) controls.
• Models available with combined floating/modulating control in a
single device.
• Models available with adjustable zero and span.
• Models available with line-voltage internal end switches.
• Models available with three-foot, 18 AWG color-coded cable.
• Access cover to facilitate connectivity.
• Metal housing with built-in mechanical end limits.
• Spring return direction field-selectable.
• Shaft position indicator and scale.
• Manual winding capability with locking function.
• UL (cUL) listed and CE compliant.
• All Models are plenum-rated per UL873
