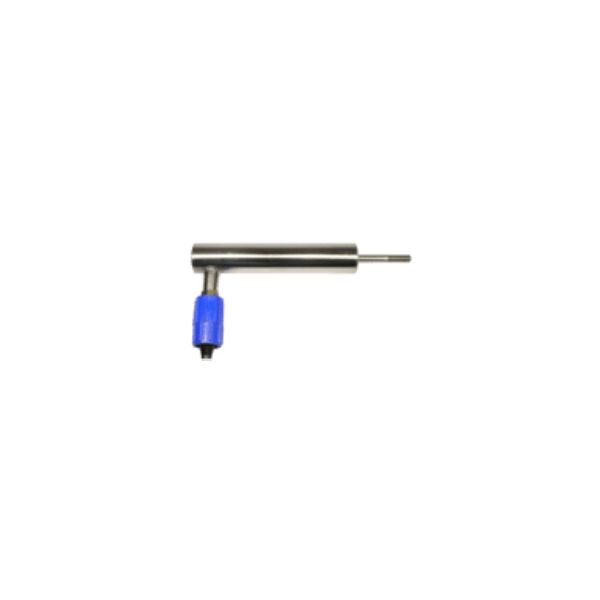

Model SSA Honeywell LVDT
Available on order

Model SSA Honeywell LVDT

Available on order
For Bulk requirement, Kindly click on enquiry now button

Product Details:



Product Description
Brand Honeywell
Model No. Model SSA
Stroke range ±12,7 mm to 101,6 mm [±0.5 in to 4.0
in]
Non-linearity (max.) ±1.0 % full scale
Temperature, operating -40 °C to 50 °C [-40 °F to 122 °F]
Temperature effect, zero
(max.)		 0.005 % full scale/°F
Temperature effect, span
(max.)		 0.005 % full scale/°F

Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.

Categories: ,

Description

Model SSA Honeywell LVDT

DESCRIPTION
Model SSA ac-ac displacement transducer is offered in ranges
from ±0.5 in up to ±4.0 in stroke length. The oceanographic type
of electrical plug allows the connection to be made underwater.
This Sub-Sea displacement sensor are pressure rated to operate
down to a depth of 7500 feet in sea water. The body of the sensor is made from 316 SS with all-welded construction. Honeywell
offers in-line amplifiers and digital indicators for both LVDT models that provide ±5 Vdc, 10 Vdc or 4 mA to 20 mA and RS232
outputs with zero and span adjustments.
